Merrill

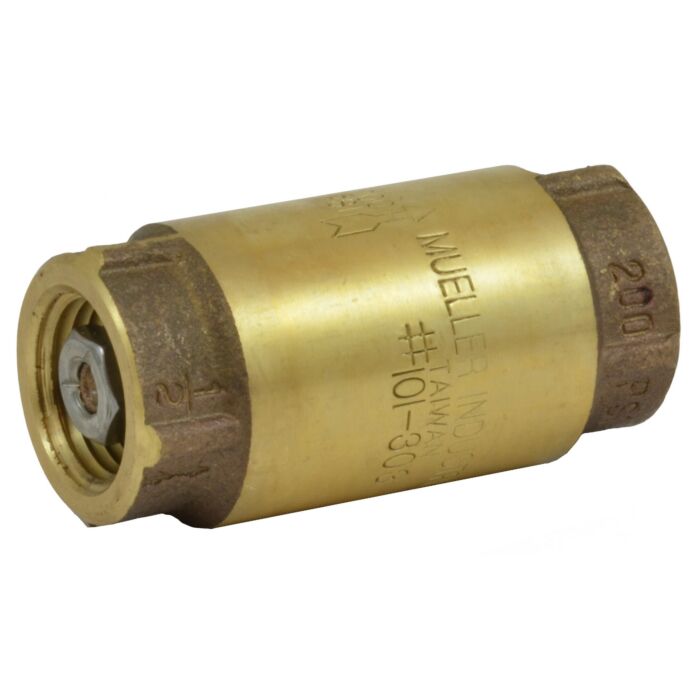

1/2 in FNPT 200 psi Check Valve
SKU: CV12BR
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$16.99
- Buy 10 for $15.29 each and save 10%
Features
Specifications
Check Valve, 1/2 in Nominal, FNPT, 200 psi, 190 deg F, Bronze Body, Stainless Steel Spring Trim, NBR, Lead-Free Lead-Free/Contains Lead
- Valve body and poppet are cast with no lead bronze
- Abrasion resistant O-ring is precision fitted to the poppet for a positive seal into the tapered self-cleaning valve seat
- Check valve has Delrin® guide bearing for the poppet stem, assures smooth, noise-free and long-life valve operation
- Corrosion resistant - stainless steel spring and stainless steel lock nut
- Can be used in both vertical and horizontal position
- No-spin poppet
| Brand | Merrill |
|---|---|
| UPC | 642367414528 |
| Store Location (Lititz, PA) | Aisle 08, Section I2 |
| Package Length (in) | 3.20" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | CVANL50 |
| Nominal Size | 1/2 in |
| Connection Type | FNPT |
| Pressure Rating | 200 psi |
| Temperature Rating | 190 deg F |
| Body Material | Bronze |
| Trim Material | Stainless Steel Spring |
| Softgoods Material | NBR |
| Lead-Free/Contains Lead | Lead-Free |
