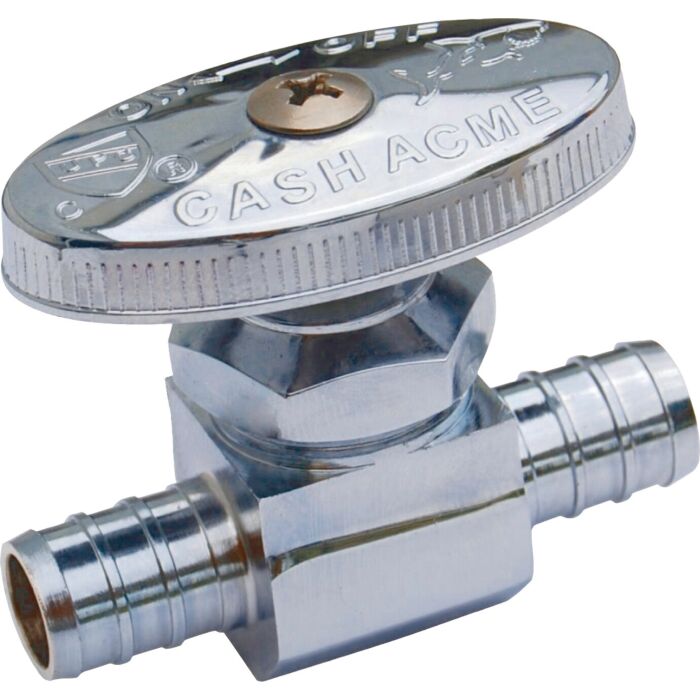

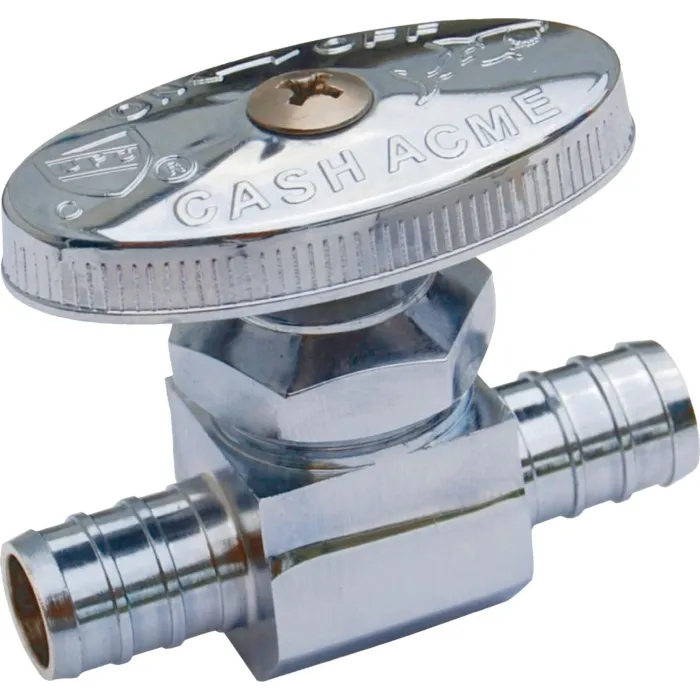

Supply Stop Valve, 1/2 in PEX Inlet Connection, 1/2 in PEX Outlet Connection, Brass Body, PTFE Seat, 125 psi, 180 deg F, Chrome
- Threads conform to ANSI/ASME B1.20.1
- Sweat connections conform to ANSI B16.18
- Cold ExpANSIon PEX connections conform to ASTM F1960
- PEX connections conform to ASTM F1807
- Push Fit connections conform to ASSE 1061
- Compression connections conform to SAE J512
- CPVC connections conform to ASTM D2846
- Max Pressure Rating 125 PSI
- Max Temperature Rating 180 deg F (82 deg C)
- Chrome Plated body
- Double EPDM O-Ring Stem Packing
- PTFE Seats
- Chrome Plated ABS Handle
Brand | Boshart Industries |
---|---|
UPC | 777808402076 |
Store Location (Lititz, PA) | Aisle 06, Section I3 |
Package Length (in) | 4.20" |
Package Width (in) | 3.20" |
Package Height (in) | 0.40" |
Manufacturer Part Number | 08SVS-05P05P |
Inlet Connection | 1/2 in PEX |
Outlet Connection Size | 1/2 in PEX |
Body Material | Brass |
Seat Material | PTFE |
Pressure Rating | 125 psi |
Temperature Rating | 180 deg F |
Finish | Chrome |
