Features
Specifications

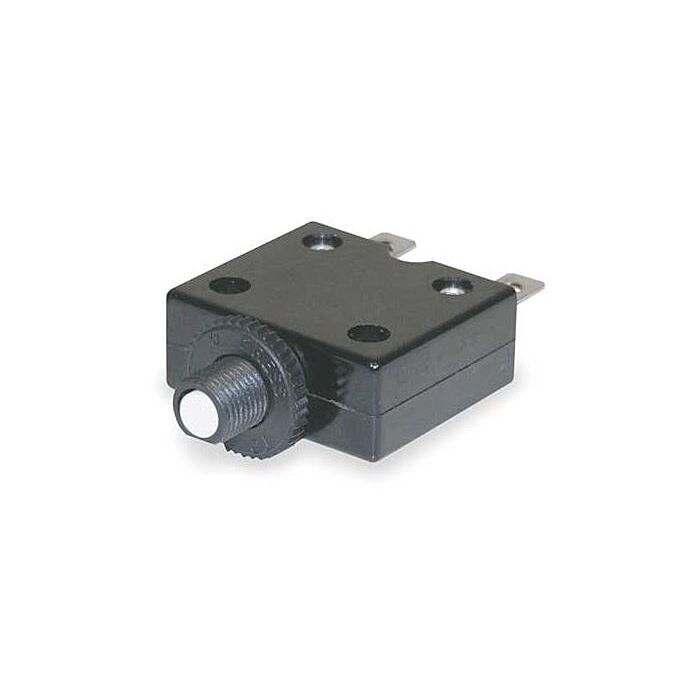

Panel Mount Circuit Breaker, Amps 10 A, AC Voltage Rating 125/250V AC, Terminal Connection 1/4 in Tab, DC Voltage Rating 32V DC, Thermal, Number of Poles 1, Circuit Breaker Actuator Push Button, Max. AIR Rating Not Rated, Curve Type Medium, Phase 1, Mounting Type 3/8 in Collar, Actuator Color White, Actuator Legend Press to Reset, Panel Cutout Size 0.343 in x 0.382 in, Max. Panel Thickness 0.118 in, Mounting Hole Thread Size 3/8 In.-27, Max. Wire Size 14 AWG, Length 1.38 in, Width 0.57 in.
Store Location (Lititz, PA) | Aisle 08, Section D3 |
---|---|
Package Length (in) | 4.40" |
Package Width (in) | 3.20" |
Package Height (in) | 0.20" |
Current Rating | 10 A |
Voltage Rating | 125/250 VDC |
Number of Poles | 1 |
Phase | 1 ph |
Wire Size | 14 AWG |
Mounting Type | 3/8 in Collar |
Width | 0.57 in |
Length | 1.38 in |
Height | 2.31 in |
Color | White |
