Schaefer Ventilation

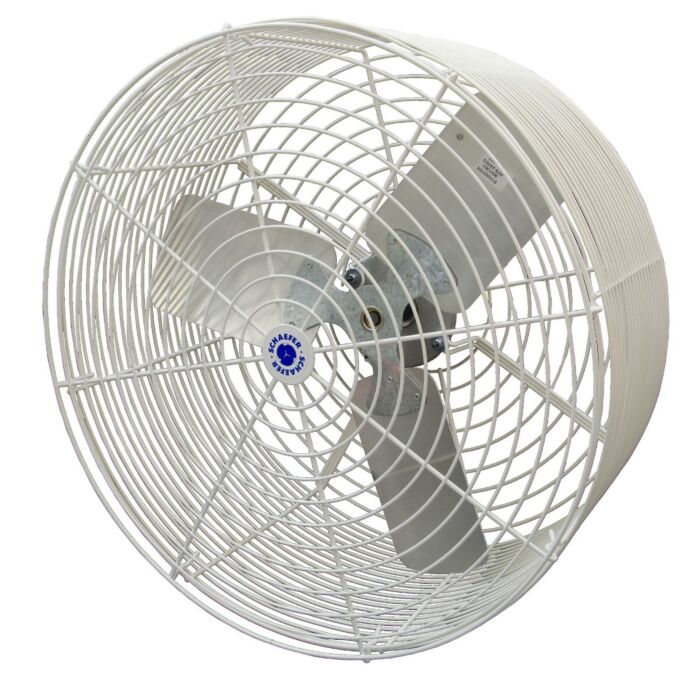

Circulation Fan
115/230 V 4.8/2.4 A 60 Hz Circulation Fan - 24 in.
115/230 V 1.3/6.5 A 60 Hz Circulation Fan - 12 in.
115/230 V 3.8/1.9 A 60 Hz Circulation Fan - 20 in.
SKU: FVS-
SKU: FVS24VK
SKU: FVS12VK
SKU: FVS20VK
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$299.99
As low as:
Features
Specifications
Reduce heat stress and improve air quality with Schaefer’s uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don’t hear them. You don’t see them. You only feel them! These fans move air in a coherent horizontal pattern creating a gentle ‘racetrack’ air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air from ceiling to floor.
- Deep guard design for unmatched performance, low noise levels, and safety without sacrificing airflow
- Matched high quality motors and blades for maximum efficiency
- Powder coated steel guards for increased durability and corrosion resistance
- Powder-coated steel mounting bracket and power cord included
- Wide variety of mounting options available for flexible and easy installation
- 1725 RPM
- 7860 CFM
- Power cord included but not wired in
Reduce heat stress and improve air quality with Schaefer’s uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don’t hear them. You don’t see them. You only feel them! These fans move air in a coherent horizontal pattern creating a gentle ‘racetrack’ air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air from ceiling to floor.
- Deep guard design for unmatched performance, low noise levels, and safety without sacrificing airflow
- Matched high quality motors and blades for maximum efficiency
- Powder coated steel guards for increased durability and corrosion resistance
- Powder-coated steel mounting bracket and power cord included
- Wide variety of mounting options available for flexible and easy installation
- 1725 RPM
- 7860 CFM
- Power cord included but not wired in
Reduce heat stress and improve air quality with Schaefer’s uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don’t hear them. You don’t see them. You only feel them! These fans move air in a coherent horizontal pattern creating a gentle ‘racetrack’ air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air from ceiling to floor.
- Deep guard design for unmatched performance, low noise levels, and safety without sacrificing airflow
- Matched high quality motors and blades for maximum efficiency
- Powder coated steel guards for increased durability and corrosion resistance
- Powder-coated steel mounting bracket and power cord included
- Wide variety of mounting options available for flexible and easy installation
- 1725 RPM
- 1470 CFM
- Power cord included but not wired in
Reduce heat stress and improve air quality with Schaefer’s uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don’t hear them. You don’t see them. You only feel them! These fans move air in a coherent horizontal pattern creating a gentle ‘racetrack’ air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air from ceiling to floor.
- Deep guard design for unmatched performance, low noise levels, and safety without sacrificing airflow
- Matched high quality motors and blades for maximum efficiency
- Powder coated steel guards for increased durability and corrosion resistance
- Powder-coated steel mounting bracket and power cord included
- Wide variety of mounting options available for flexible and easy installation
- 1725 RPM
- 5470 CFM
| Brand | Schaefer Ventilation |
|---|---|
| UPC | 717490344520 |
| Store Location (Lititz, PA) | Aisle 03, Section C2 |
| Package Length (in) | 12.00" |
| Package Width (in) | 24.00" |
| Package Height (in) | 24.00" |
| Manufacturer Part Number | VK24 |
| Series | Versa-Cool |
| Voltage Rating | 115/230 V |
| Current Rating | 4.8/2.4 A |
| Frequency Rating | 60 Hz |
| Power Rating | 1/2 hp |
| Material | Aluminum Blade |
| Mounting Type | Ceiling |
| Diameter | 24 in |
| CFM Rating | 7860 cfm |
| Drive Type | Direct |
| Frame Size | 48Z |
| Number of Blades | 3 |
| Number of Speeds | 1 |
| Phase | 1 ph |
| Speed | 1725 rpm |
| Wiring | Power cord included but not wired in |
| Brand | Schaefer Ventilation |
|---|---|
| UPC | 717490344520 |
| Store Location (Lititz, PA) | Aisle 03, Section C2 |
| Package Length (in) | 12.00" |
| Package Width (in) | 24.00" |
| Package Height (in) | 24.00" |
| Manufacturer Part Number | VK24 |
| Series | Versa-Cool |
| Voltage Rating | 115/230 V |
| Current Rating | 4.8/2.4 A |
| Frequency Rating | 60 Hz |
| Power Rating | 1/2 hp |
| Material | Aluminum Blade |
| Mounting Type | Ceiling |
| Diameter | 24 in |
| CFM Rating | 7860 cfm |
| Drive Type | Direct |
| Frame Size | 48Z |
| Number of Blades | 3 |
| Number of Speeds | 1 |
| Phase | 1 ph |
| Speed | 1725 rpm |
| Wiring | Power cord included but not wired in |
| Brand | Schaefer Ventilation |
|---|---|
| UPC | 717490344476 |
| Store Location (Lititz, PA) | Aisle 03, Section C1 |
| Package Length (in) | 12.00" |
| Package Width (in) | 12.00" |
| Package Height (in) | 12.00" |
| Manufacturer Part Number | VK12 |
| Series | Versa-Cool |
| Voltage Rating | 115/230 V |
| Current Rating | 1.3/6.5 A |
| Frequency Rating | 60 Hz |
| Power Rating | 1/10 hp |
| Material | Aluminum Blade |
| Color | White |
| Mounting Type | Ceiling |
| Diameter | 12 in |
| CFM Rating | 1470 cfm |
| Drive Type | Direct |
| Number of Blades | 3 |
| Number of Speeds | 1 |
| Phase | 1 ph |
| Speed | 1725 rpm |
| Wiring | Power cord included but not wired in |
| Brand | Schaefer Ventilation |
|---|---|
| UPC | 717490344483 |
| Store Location (Lititz, PA) | Aisle 03, Section C1 |
| Package Length (in) | 12.00" |
| Package Width (in) | 20.00" |
| Package Height (in) | 20.00" |
| Manufacturer Part Number | VK20 |
| Series | Versa-Cool |
| Voltage Rating | 115/230 V |
| Current Rating | 3.8/1.9 A |
| Frequency Rating | 60 Hz |
| Power Rating | 1/3 hp |
| Material | Aluminum Blade |
| Color | White |
| Mounting Type | Ceiling |
| Diameter | 20 in |
| CFM Rating | 5470 cfm |
| Drive Type | Direct |
| Frame Size | 48 |
| Number of Blades | 3 |
| Number of Speeds | 1 |
| Phase | 1 ph |
| Speed | 1725 rpm |
