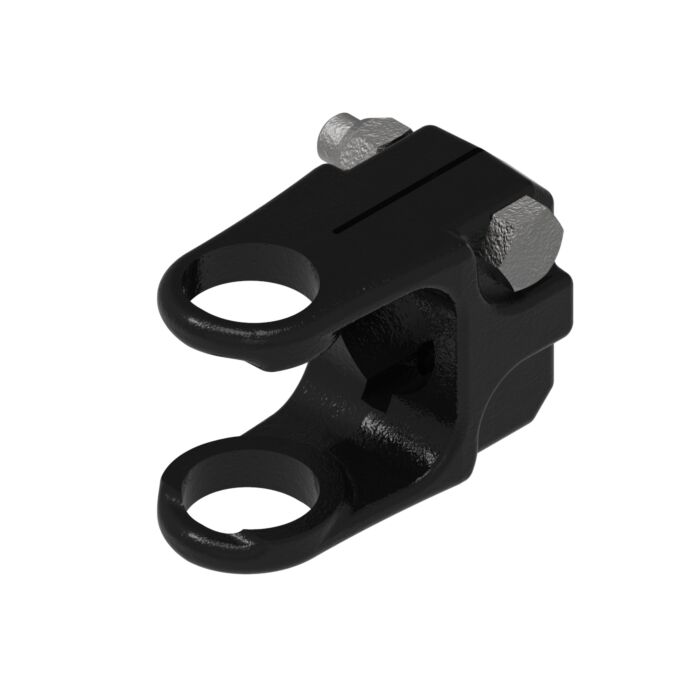

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
Brand | Weasler |
---|---|
UPC | 728357102429 |
Store Location (Lititz, PA) | Aisle 08, Section W1 |
Package Length (in) | 4.60" |
Package Width (in) | 0.80" |
Package Height (in) | 2.80" |
Manufacturer Part Number | 807-0616 |
Length | 2.5 inch |
Height | 2.5 inch |
Width | 1.56 inch |
Weight | 0.96 lb |
Series | 6 |
Bore | 1" |
Bore Description | ROUND WITH KEYWAY |
Connection 1 Description | CLAMP |
Keyway | 0.25" |
Bearing Diameter | 0.969" |
Bearing Span | 2.295" |
Horsepower at 540 RPM | 19 hp |
Horsepower at 1000 RPM | 29 hp |
