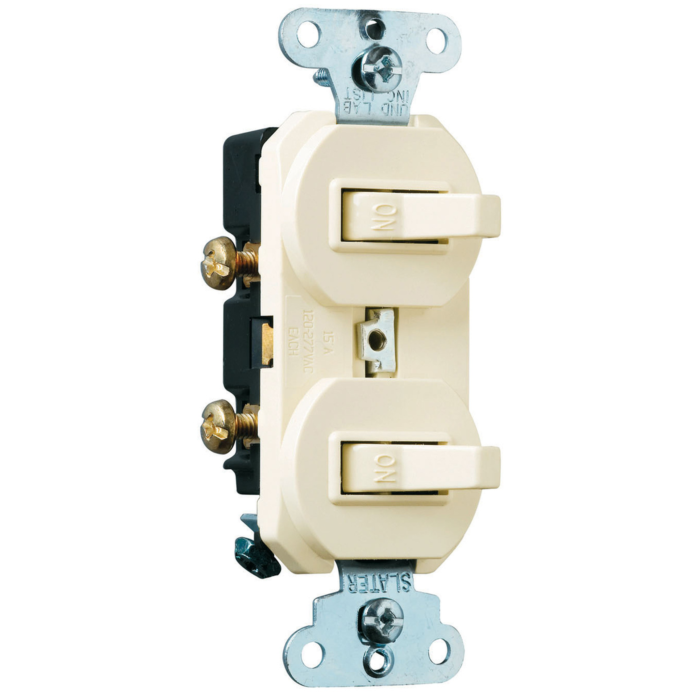

Combination Switches
SKU: 696LAG
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$14.49
Features
Specifications
Combination Switches
- Easily accessible break-off separate or common feed.
- Side wire #12 and #14 AWG.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
- For covering patents, see www.legrand.us/patents.
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007006223 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 2.19" |
| Package Width (in) | 1.81" |
| Package Height (in) | 1.81" |
| Manufacturer Part Number | 696LAG |
| Depth | 0.94 in |
| Color | Light Almond |
| Height | 4.06 in |
| Width | 1.32 in |
| Finish | Satin |
| Material | Thermoplastic |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Special Features | Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements. |
| Type | Tamper-Resistant |
| Load Type | Incandescent |
| Standard | UL20 |
| Amperage | 15.0 A |
| Voltage | 277 VAC |
| Number of Gangs | 1 |
| Switch Type | Toggle |
| Features | Combination |
| Indoor/Outdoor | Indoor |
| Number of Poles | Single Pole |
| Mounting Type | Wall Box |
| Number of Switches | 2.0 |
| Wall Plate Included | No |
| Throw Type | Single Throw |
| Operating Cycles | 30000.0 |
| Contact Configuration | N-O |
| Requires Neutral Wire | Yes |
| Connection Location | Side Only |
| Application Sector | Residential |
| Load Rating | 15 A @ 120/277 VAC |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #12 AWG |
| Environmental Conditions | Flammability: UL94 V2 |
