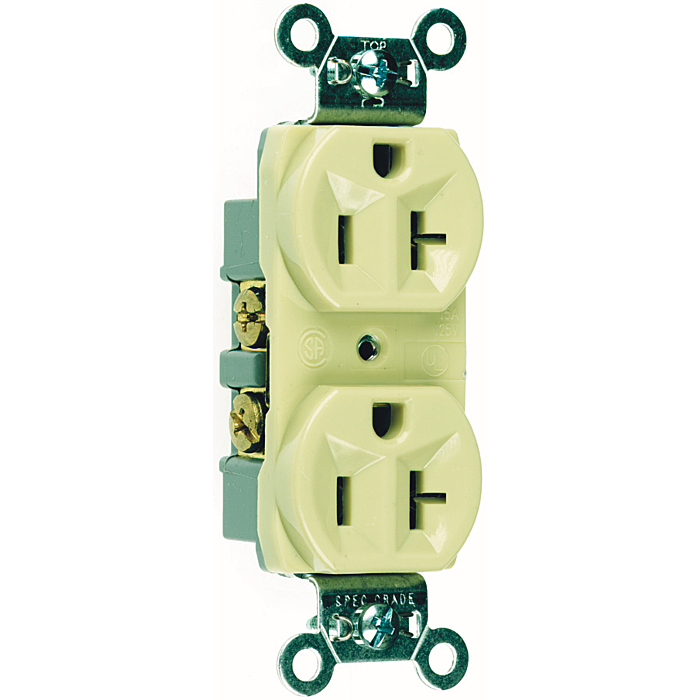

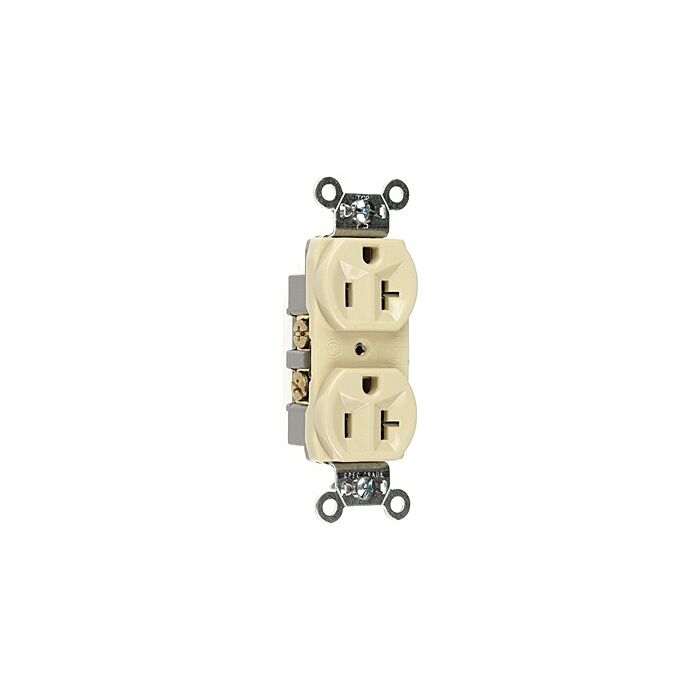

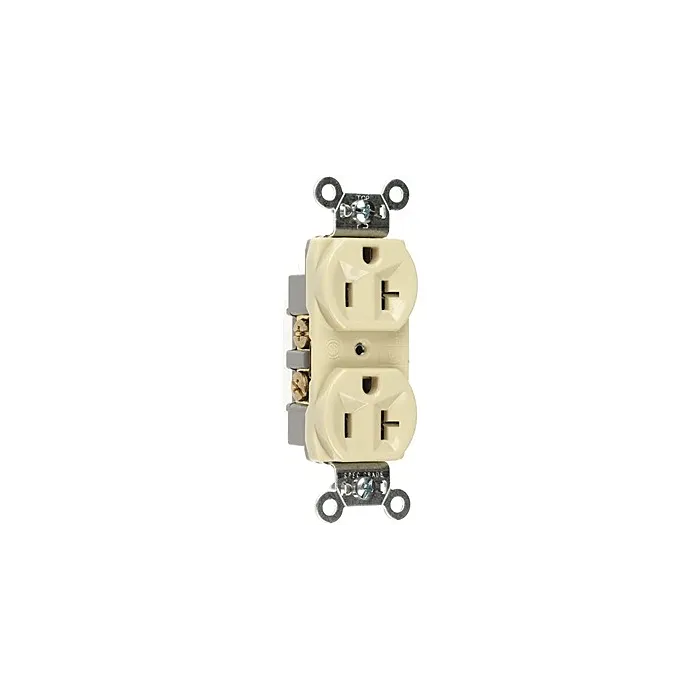

20A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, Ivory
SKU: ECR20I
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.99
- Buy 10 for $3.59 each and save 10%
Features
Specifications
Downloads
20A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, Ivory
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007119169 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | CR20ICC12 |
| Depth | 0.78 in |
| Height | 2.635 in |
| Color | Ivory |
| Width | 1.322 in |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Standard | UL 498 |
| Voltage | 125.0 V |
| Mounting Type | Box |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Single Piece Plated Steel Mounting Strap |
| Number of Receptacles | 2.0 |
| Outlet Type | Straight Blade |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
