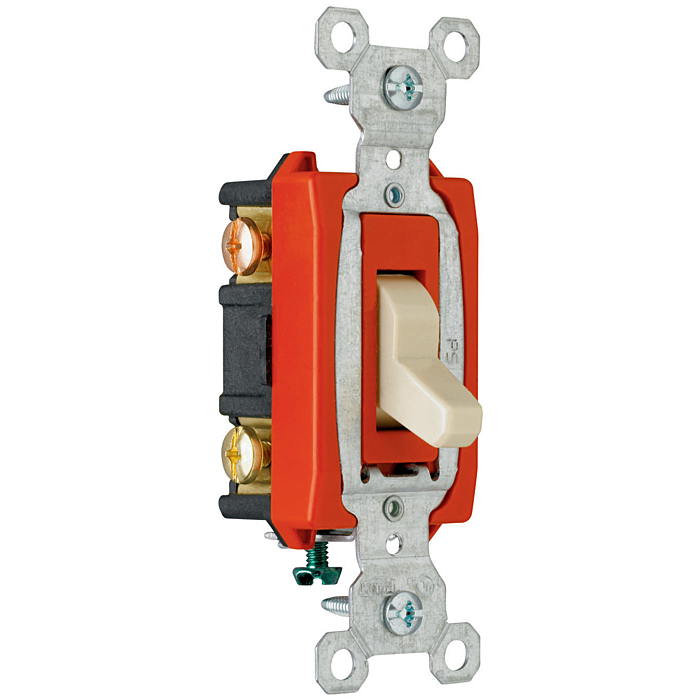

Commerical 20A Specification Grade Toggle Switch, Ivory
SKU: 6333
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.29
Features
Specifications
Downloads
Commercial 3-Way Switch, Side-Wire, 20A 120/277V.These switches offer excellent value while meeting federal specification standards. External screw-pressure-plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard use and abuse.
- One-piece brass alloy contact arm for reliable electrical performance.
- One-piece steel strap with integral ground is plated for corrosion resistance.
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
- Heavy-duty toggle bumpers for smooth and quiet operation.
- Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
- Oversized silver alloy contacts for longer dependable switch life.
- Tri-drive terminal and mounting screws.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- cULus Listed
- Federal Spec Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 032664488580 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 1.07" |
| Package Width (in) | 1.32" |
| Package Height (in) | 1.32" |
| Manufacturer Part Number | CS20AC3I |
| Depth | 1.073 in |
| Type | Switch |
| Height | 3.281 in |
| Load Type | Incandescent |
| Width | 1.32 in |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Voltage | 277 VAC |
| Standard | Flammability Rating UL94 V2 |
| Number of Gangs | 1 |
| Seismic Tested | No |
| Color | Ivory |
| Finish | Matte |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Switch Type | Toggle |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Throw Type | Double Throw |
| Requires Neutral Wire | No |
| NEMA Rating | WD-1 and WD-6 |
| Application Sector | Industrial |
| Load Rating | 20 A @ 120/277 VAC |
| Horsepower Rating | 2 HP @ 240 VAC |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Contact Rating | Oversized silver alloy contacts |
| Features | Single Piece Plated Steel Mounting Strap |
| Contact Configuration | One piece brass alloy contact arm |
| Degree of Protection | 1500V Dielectric Withstand Voltage |
| Special Features | Side wire, locking support, heavy duty toggle |
