Pass & Seymour

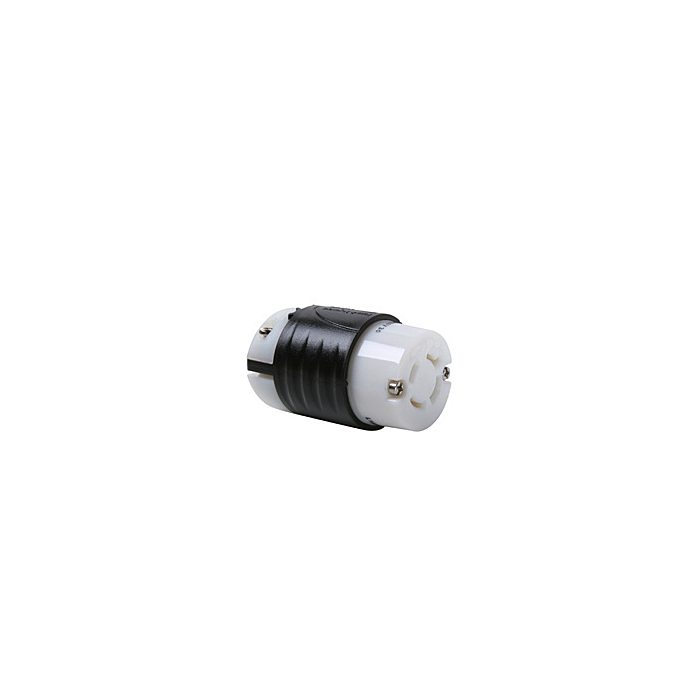

20A NEMA Connector L1620 - Black Back, White Front Body

SKU: EL1620C
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 3 in stock
Features chevron-down chevron-up
20A NEMA Connector L1620 - Black Back, White Front Body
  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
  • cULus Listed
Specifications chevron-down chevron-up
Brand Pass & Seymour
UPC 785007162011
Store Location (Lititz, PA) Aisle 08, Section C1
Package Length (in) 2.20"
Package Width (in) 2.20"
Package Height (in) 3.33"
Manufacturer Part Number L1620C
Length 3.33 in
Width 2.2 in
Color Black
Product Line Pass & Seymour
Country of Origin Mexico
Flanged No
Type Connector
Amperage 20.0 A
Standard UL 498
Voltage 480.0 V
Number of Wires 3.0
Warranty Type 1-Year
Indoor/Outdoor Indoor
Connector Style Locking
Number of Poles Double Pole
Features Corrosion Resistant
Application Sector Industrial
Terminal Accommodation #4 AWG
NEMA Configuration Code L16-20R
Special Features Locking Device, impact resistant
