Brand | Schneider Electric |
---|---|
UPC | 785901073536 |
Store Location (Lititz, PA) | Aisle 04, Section D1 |
Package Length (in) | 3.40" |
Package Width (in) | 1.80" |
Package Height (in) | 3.00" |
Manufacturer Part Number | 8910DPA33V02 |
Product Certifications | UL Recognized || CSA |
Warranty | 18 months |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant with Exemptions |
[Uc] Control Circuit Voltage | 120 V AC 60 Hz || 110 V AC 50 Hz |
Height | 2.31 in |
Locked Rotor Rated Current | 150 A 460 V AC || 120 A 575 V AC || 180 A 277 V AC |
Maximum Horse Power Rating | 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 15-15 hp 460 V AC, 3 phase || 20-20 hp 575 V AC, 3 phase |
Phase | 3 phase |
Net Weight | .45 kg || .99 lb(US) |
Electrical Connection | binder head || quick connect terminals |
Width | 2.37 in |
Depth | 2.90 in || 76 mm |
[Ue] Rated Operational Voltage | 600 V AC |
Weight | .45 kg |
Range Of Product | DPA |

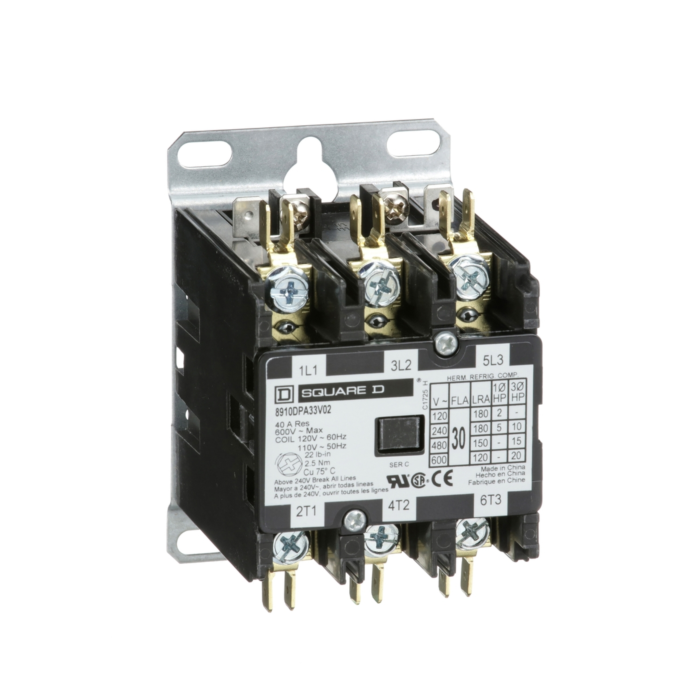

Product Or Component Type | Definite Purpose Contactor |
Pole Contact Composition | 3 NO |
Poles Description | 3P |
Line Rated Current | 30 A |
Motor Control Solutions for the North American Market Data Bulletin - 8536DB0901 (pdf)
9991DPG1 Enclosure - 30072-005-79 (pdf)
DEFINITE PURPOSE CONTACTORS (2 & 3 POLE) SERIES C DPA 20-40A - E0310201-01-C (dwg)
DEFINITE PURPOSE CONTACTORS (2 & 3 POLE) SERIES C DPA 20-40A - E0310201-01-C (dxf)
DEFINITE PURPOSE CONTACTORS (2 & 3 POLE) SERIES C DPA 20-40A - E0310201-01-C (pdf)
Replacement Coils for 8910 DPA Contactors Installation Instructions - 30072-004-100 (pdf)
8910DP/DPA, Certificate, UL - UL+Certificate+E3190_NLDX2 (pdf)
8910DP/DPA, Certificate, UL - UL+Certificate+E3190_NLDX8+Certified+for+Canada (pdf)
8910DP/DPA, Certificate, CSA - CSA+Certificate+025490_s_000+3211-04 (pdf)
Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
Square D Definite Purpose Control Catalog - 8910CT9301 (pdf)
