Brand | Schneider Electric |
---|---|
UPC | 785901024187 |
Store Location (Lititz, PA) | Aisle 04, Section D1 |
Package Length (in) | 3.00" |
Package Width (in) | 1.80" |
Package Height (in) | 2.80" |

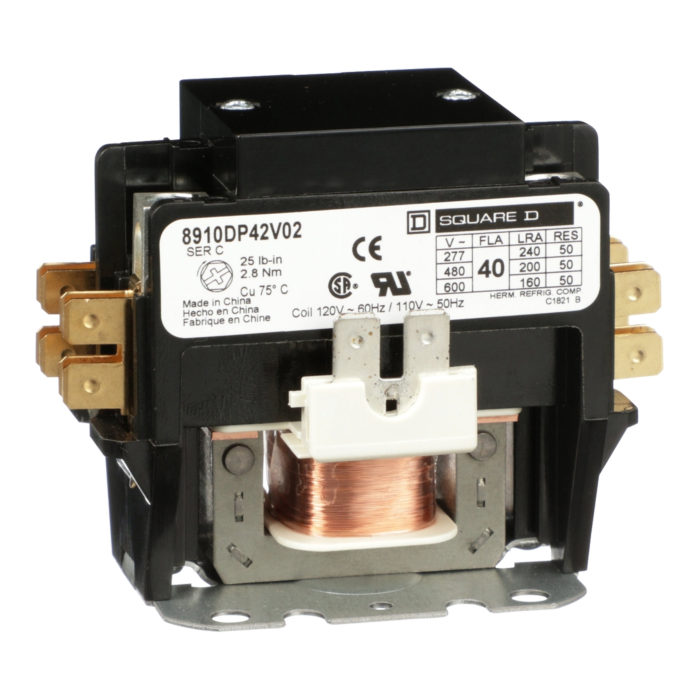

Manufacturer Part Number | 8910DP42V02 |
Product Certifications | UL Recognized || CSA |
Warranty | 18 months |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant with Exemptions |
[Uc] Control Circuit Voltage | 120 V AC 60 Hz || 110 V AC 50 Hz |
Locked Rotor Rated Current | 240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC |
Maximum Horse Power Rating | 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase |
Phase | 1 phase |
Electrical Connection | box lugs || quick connect terminals |
[Ue] Rated Operational Voltage | 600 V AC |
Range Of Product | DP |
Product Or Component Type | Definite Purpose Contactor |
Pole Contact Composition | 2 NO |
Poles Description | 2P |
Line Rated Current | 40 A |
Motor Control Solutions for the North American Market Data Bulletin - 8536DB0901 (pdf)
9991DPG1 Enclosure - 30072-005-79 (pdf)
DEFINITE PURPOSE CONTACTORS (2 POLE) SERIES C DP 20-40A - E0310101-01-C (dwg)
DEFINITE PURPOSE CONTACTORS (2 POLE) SERIES C DP 20-40A - E0310101-01-C (dxf)
DEFINITE PURPOSE CONTACTORS (2 POLE) SERIES C DP 20-40A - E0310101-01-C (pdf)
8910DP Contactors Series C Dimensions Illustration - 8910-DP-Contactors-TI-DIM-EN.svg
8910DP/DPA, Certificate, UL - UL+Certificate+E3190_NLDX2 (pdf)
8910DP/DPA, Certificate, UL - UL+Certificate+E3190_NLDX8+Certified+for+Canada (pdf)
8910DP/DPA, Certificate, CSA - CSA+Certificate+025490_s_000+3211-04 (pdf)
Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
Square D Definite Purpose Control Catalog - 8910CT9301 (pdf)
