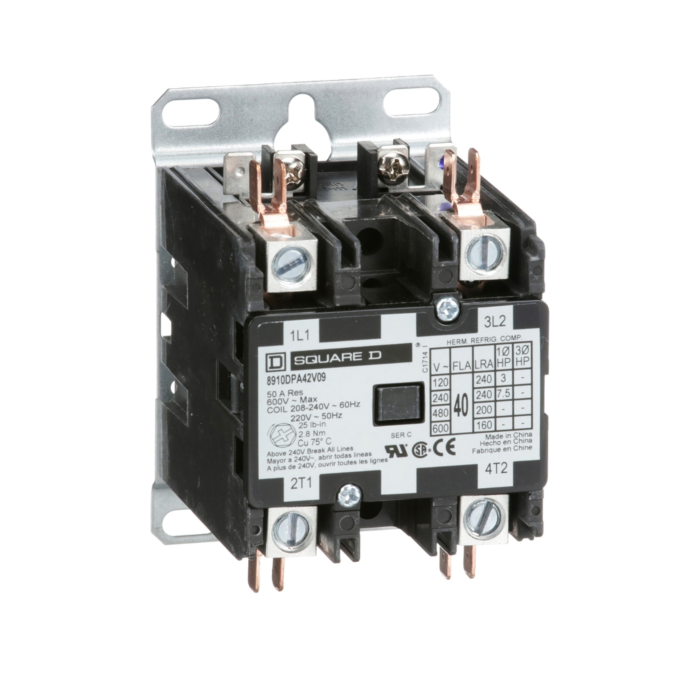

Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
SKU: 2UTN6
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$79.99
Features
Specifications
Downloads
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
| Brand | Square D |
|---|---|
| UPC | 785901073468 |
| Store Location (Lititz, PA) | Aisle 04, Section D1 |
| Package Length (in) | 3.20" |
| Package Width (in) | 1.80" |
| Package Height (in) | 3.20" |
| Manufacturer Part Number | 8910DP42V09 |
| Locked Rotor Rated Current | 240 A 277 V AC, 200 A 460 V AC, 160 A 575 V AC |
| Maximum Horse Power Rating | 3-3 hp 115 V AC, 1 phase, 7.5-7.5 hp 230 V AC, 1 phase |
| Uc Control Circuit Voltage | 208...240 V AC 60 Hz, 220 V AC 50 Hz |
| Ue Rated Operational Voltage | 600 V AC |
| Line Rated Current | 40 A |
| Persona Type Ids | EU, LC, OM, OM8, PB |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Market Segmentation | Commercial, Industrial |
| Electrical Connection | box lugs, quick connect terminals |
| Certificate Agency | UL Recognized, CSA |
| Local Data Status | Publishable |
| Local Publishable Date | 2026-03-25 |
| Return Indicator | Y |
| Stocking Flag | N |
| Stock Policy | 2 |
| Device Type | LV equipment - LV contactor |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 20 year(s) |
| Weee Scope | In |
| Weee Product Category | 5 |
| Scope Perimeter | Outside of Europe |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope | Yes |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Conformity Date | 2541 |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Without Single Use Plastic | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 2 |
| Tier | 2 |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Phase | 1 phase |
| Pole Contact Composition | 2 NO |
| Poles Description | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | Definite Purpose Contactor |
| Range Of Product | DPA |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Warranty In Months | 18 |
| Offer Owner Code | 190788 |
| Pn | 1 |
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Warranty Period | 18 months |
| Warranty | 18 months |
| Country of Origin | China, France, Mexico, United States |
