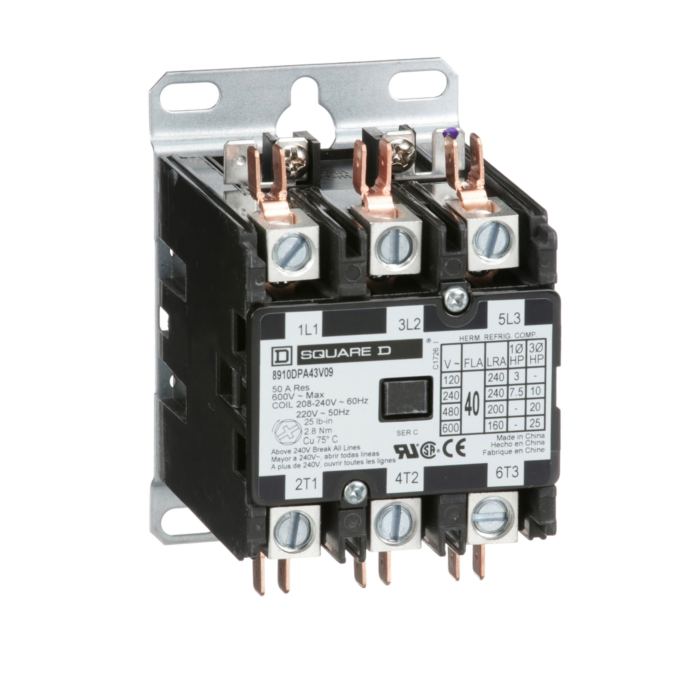

Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
SKU: 8910DPA43V09
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$89.99
Features
Specifications
Downloads
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Brand | Schneider Electric |
|---|---|
| UPC | 785901073437 |
| Store Location (Lititz, PA) | Aisle 04, Section D1 |
| Package Length (in) | 3.20" |
| Package Width (in) | 2.20" |
| Package Height (in) | 3.20" |
| Manufacturer Part Number | 8910DPA43V09 |
| Product Certifications | UL Recognized, CSA |
| Locked Rotor Rated Current | 240 A 277 V AC, 200 A 460 V AC, 160 A 575 V AC |
| Maximum Horse Power Rating | 3-3 hp 115 V AC, 1 phase, 7.5-7.5 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 3 phase, 20-20 hp 460 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase |
| Uc Control Circuit Voltage | 208...240 V AC 60 Hz, 220 V AC 50 Hz |
| Line Rated Current | 40 A |
| Ue Rated Operational Voltage | 600 V AC |
| Persona Type Ids | EU, LC, OM, OM8, PB |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Market Segmentation | Commercial, Industrial |
| Electrical Connection | quick connect terminals, box lugs |
| Local Data Status | Publishable |
| Local Publishable Date | 2026-03-25 |
| Return Indicator | Y |
| Stocking Flag | N |
| Stock Policy | 2 |
| Device Type | LV equipment - LV contactor |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 20 year(s) |
| Legacy Weee Scope | In |
| Weee Product Category | 5 |
| Scope Perimeter | At least in Europe |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope | Yes |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Conformity Date | 2541 |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Without Single Use Plastic | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 2 |
| Tier | 2 |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Phase | 3 phase |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | Definite Purpose Contactor |
| Range Of Product | DPA |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty In Months | 18 |
| Offer Owner Code | 190788 |
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Warranty Period | 18 months |
| Warranty | 18 months |
| Country of Origin | China, France, Mexico, United States |
