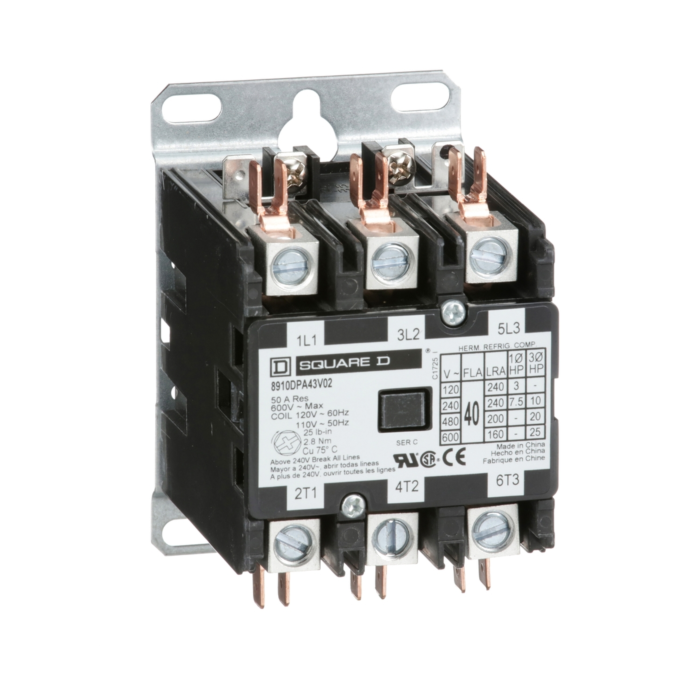

Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open

Name: Schneider Electric Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
Brand: Schneider Electric
SKU: 2UTP8
Price: 99.99 USD
Availability: InStock

SKU: 2UTP8 | Location: Aisle 04, Section D1

PICKUP

Your store: PaulB Lititz, PA |

DELIVERY

Ship to your home or business

3 In stock

Features

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Specifications

Brand	Schneider Electric
UPC	785901073444
Store Location (Lititz, PA)	Aisle 04, Section D1
Package Length (in)	3.60"
Package Width (in)	1.80"
Package Height (in)	3.20"
Manufacturer Part Number	8910DPA43V02
Product Certifications	UL Recognized \|\| CSA
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
[Uc] Control Circuit Voltage	120 V AC 60 Hz \|\| 110 V AC 50 Hz
Height	2.31 in
Locked Rotor Rated Current	240 A 277 V AC \|\| 200 A 460 V AC \|\| 160 A 575 V AC
Maximum Horse Power Rating	3-3 hp 115 V AC, 1 phase \|\| 7.5-7.5 hp 230 V AC, 1 phase \|\| 10-10 hp 230 V AC, 3 phase \|\| 20-20 hp 460 V AC, 3 phase \|\| 25-25 hp 575 V AC, 3 phase
Phase	3 phase
Net Weight	.45 kg \|\| .99 lb(US)
Electrical Connection	quick connect terminals \|\| box lugs
Width	2.37 in
Depth	2.90 in \|\| 76 mm
[Ue] Rated Operational Voltage	600 V AC
Weight	.45 kg
Range Of Product	DPA
Product Or Component Type	Definite Purpose Contactor
Pole Contact Composition	3 NO
Poles Description	3P
Line Rated Current	40 A
