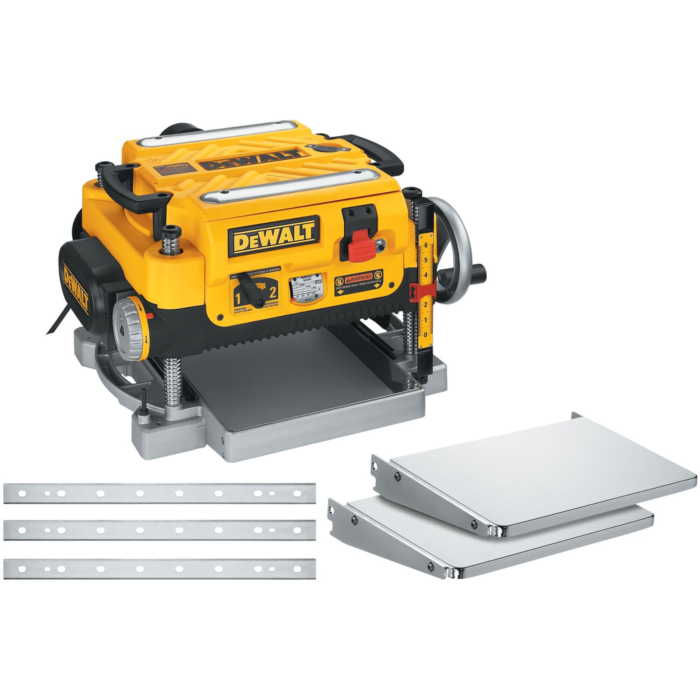

DEWALT 13 in. Three Knife, Two Speed Thickness Planer
SKU: DW735X | Location: Aisle 23, Section M7
$779.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
6 In stock
Features
Specifications
13IN PLANER W/EXTRA KNIVES AND TABLES, Made in: Taiwan, Dimensions: 21.75 X 24.25 X 22. Weight: 102 The DEWALT DW735X 13-Inch, Three Knife, Two Speed Thickness Planer has a powerful 15 AMP, 20,000 RPM motor (10,000 RPM cutterhead speed) that handles larger cuts in wider materials with ease. The three knife cutter-head delivers 30% longer knife life and makes knife change faster and easier. The two speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI. It has a fan-assisted chip ejection that vacuums chips off of the cutter-head and exhausts them out of the machine. With a 19-3/4" cast aluminum base it is 2X more rigid than a standard 10" base and folding tables. The automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user. It also has a material removal gauge and extra-large thickness scale that deliver accurate cuts with every pass. The extra-large turret depth stop allows users to return to most frequently used thicknesses with ease. Includes extra set of knives, infeed and outfeed tables, and fastener attachments for the in/out feed table (attached to the base of the Planer base).
- Powerful 15 amp, 20,000 rpm motor (10,000 rpm cutterhead speed) handles larger cuts in wider materials with ease
- Three knife cutter head delivers 30% longer knife life and makes knife change faster and easier
- Two-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI
- Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
- 19-3/4 in. cast aluminum base is 2 times more rigid than a standard 10 in. base and folding tables
- Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
- Material removal gauge and extra large thickness scale deliver accurate cuts with every pass
- Extra large turret depth-stop allows users to return to most frequently used thicknesses with ease

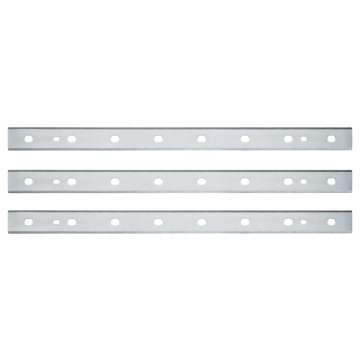

- Includes infeed and outfeed tables and an extra set of knives
| Brand | DEWALT |
|---|---|
| UPC | 885911177801 |
| Store Location (Lititz, PA) | Aisle 23, Section M7 |
| Package Length (in) | 24.25" |
| Package Width (in) | 22.00" |
| Package Height (in) | 22.00" |
| Manufacturer Part Number | DW735X |
| Country of Origin | Taiwan |
| Height | 20.970 in |
| Length | 24.580 in |
| Width | 22.000 in |
| Weight | 101 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Corded |
| Motor Type | Brushed |
| Voltage | 120 V V |
| Battery Included | No |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,9.pdf |
| Amperage | 15.0 |
| Cord Length | 13.0 Ft |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | UL Listed |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | No |
| File/Certification Number (Lowes Required) | Na |
| Bare Tool | No |
| Blade Qty | 3 |
| Blade Type | Disposable, Reversible |
| Bluetooth Compatibility | No |
| Case Type | No Case Included |
| Cuts Per Minute | 30000 |
| Cutting Width | 13 In |
| Dust Solution Compatible | Yes |
| Fence Included | No |
| Handle Material | Plastic |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Kit | Yes |
| Maximum Cut Depth @ 45 Deg. | .125 |
| Maximum Cut Depth @ 90 Deg. | 13 |
| Maximum Speed | 2000 RPM Rpm |
| Number Of Speeds | Variable |
| Switch Type | Speed Gear Box |
| Uncertainty K1 (Vibration) | 2 |
| Variable Speed | Yes |
| Wifi Compatibility | No |
