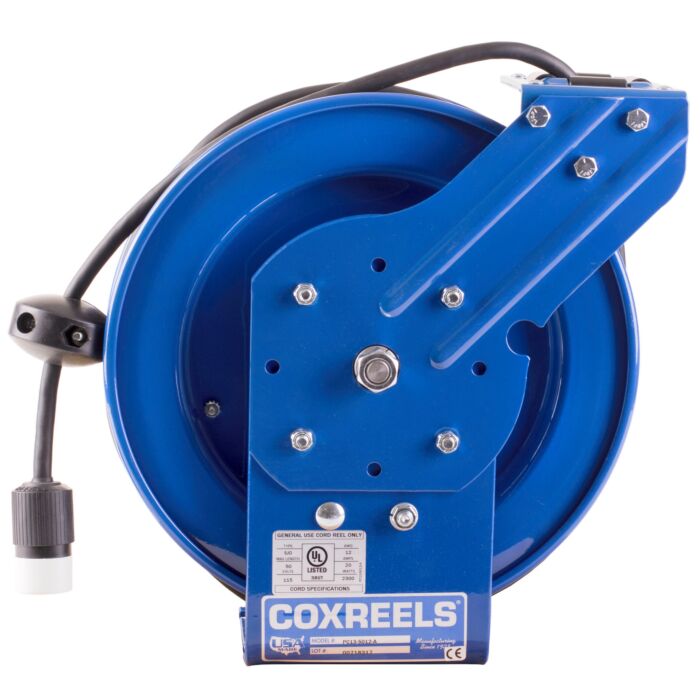

COXREELS® EZ-PC Series Spring Driven Power Cord Reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long lasting, trouble free performance even under the most demanding conditions.
- Rolled edges and ribbed discs provide strength and safety
- Made in the USA - sold and supported worldwide
- Component cover - external, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance
- No need to remove the reel from its mount
- EZ-COIL® equipped - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
- COXREELS® patented safety system that retracts up to 80% slower than conventional reels
- CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4 in steel base - sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
- Multi-position guide arm - versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
- Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, adjustable solid rubber cord stop, 5 ft lead cable and grounding plug, sturdy permanently lubricated precision bearing and quad 4 plug industrial receptacle
Brand | Coxreels |
---|---|
Store Location (Lititz, PA) | Aisle 07, Section C1 |
Package Length (in) | 16.40" |
Package Width (in) | 11.00" |
Package Height (in) | 11.00" |
Manufacturer Part Number | EZ-PC13-5012-B |
Type | 1-Pedestal Safety System |
Series | EZ-PC Series |
Voltage Rating | 115 V |
Current Rating | 20 A |
Cord Length | 50 ft |
Conductor Size | 12/3 AWG |
Reel Material | Steel |
Reel Mounting Type | Bench/Ceiling/Floor/Vehicle |
Receptacle Type | Quad Box |
Grade | Industrial |
Material | Steel |
Dimensions | 8-1/2 in W x 13-1/2 in L x 14-7/8 in H |
