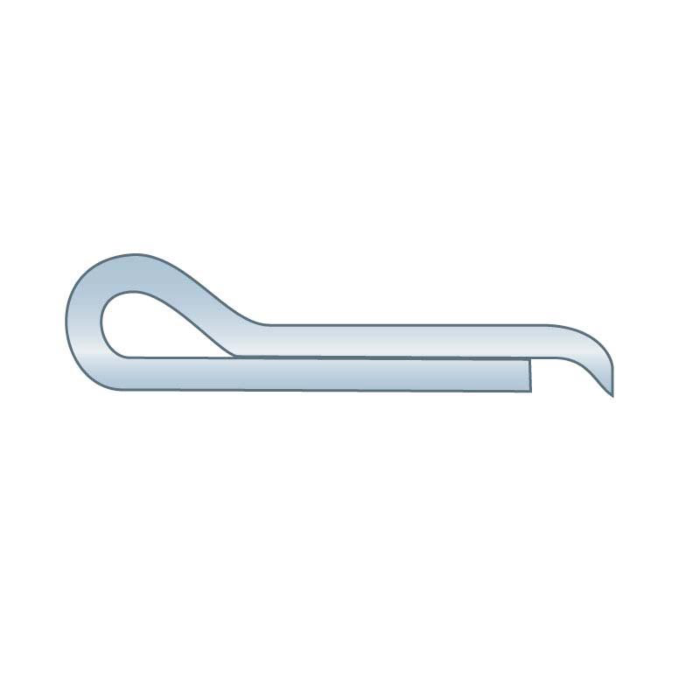

Cotter Pin Hammerlock 3/8" x 3" Carbon Steel Zinc Clear ASME B18.8.1

SKU: CT38X3
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store Not stocked
Features chevron-down chevron-up
Cotter Pin Hammerlock 3/8" x 3" Carbon Steel Zinc Clear ASME B18.8.1
Specifications chevron-down chevron-up
Package Length (in) 0.25"
Package Width (in) 0.75"
Package Height (in) 4.00"
Width 0.3350 in
Effective Length 3.0000 in
Effective Length Fraction 3 in
Illustration ILL-CPHZ
Inch or Metric Inch
Outside Diameter 0.3750 in
Outside Diameter Fraction 3/8 in
Outside Diameter Maximum 0.3410 in
Outside Diameter Minimum 0.3290 in
Finish (Pins) Zinc Clear
Material (Pins) Carbon Steel
Prong Length Minimum 0.1600 in
Specification ASME B18.8.1
Type (Pins) Cotter Pin Hammerlock
Width Maximum 0.3350 in
Width Minimum 0.2630 in
