Features
Specifications

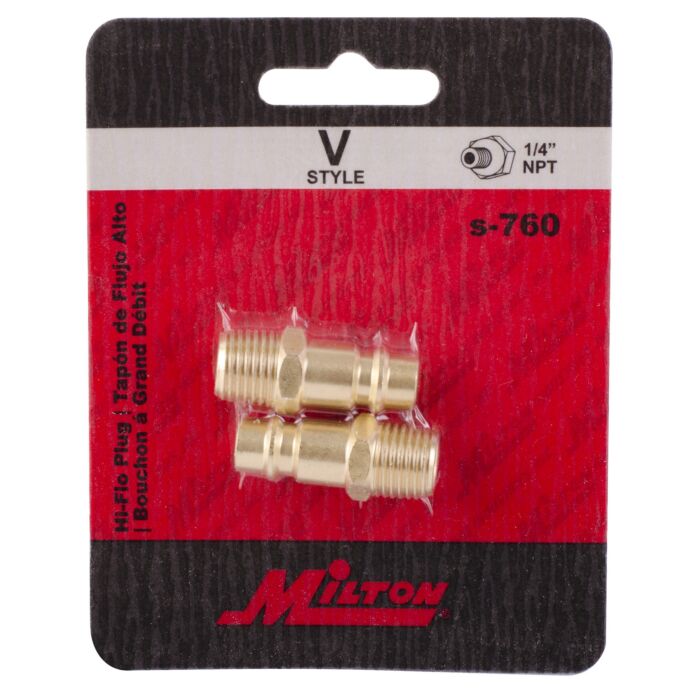

Plug, 250 deg F, Brass, 1/4 in Male NPT Thread Size, 74 scfm Flow Rate, 1/4 in Basic Flow Size, V-Style, 300 psi Maximum Inlet Pressure, Warning: Prop 65 Warning: Cancer and Reproductive Harm, Yes Need Protective Eye Wear
- Highflowpro® 1/4 in Male NPT. 1/4 in Basic Flow Size. 300 PSI Max Inlet Pressure. 74 SCFM. 250 Degree F Max Temp
- Available: In either Brass or Steel. (Milton® #S-760-1 for V-Style 1/4 in MNPT Steel Plug)
- V-Style: Milton® V-Style, ColorFit® V-Style, + competitor V couplers/plugs are all compatible! Milton® V-Style couplers will also accept M-Style® and A-Style plugs
- Sleeve Release: PUSH coupler (V, M or A-Style) to connect to plug, PULL sleeve back to remove. Buna-N seals
Brand | Milton |
---|---|
UPC | 030937400499 |
Store Location (Lititz, PA) | Aisle 30, Section N4 |
Package Length (in) | 3.60" |
Package Width (in) | 4.60" |
Package Height (in) | 0.40" |
Manufacturer Part Number | S-760 |
Temperature Rating | 250 deg F |
Material | Brass |
NPT Thread Size | 1/4 in Male |
Air Flow Rate | 74 scfm |
Basic Flow Size | 1/4 in |
Style | V-Style |
Maximum Inlet Pressure | 300 psi |
Warning | Prop 65 Warning: Cancer and Reproductive Harm |
Need Protective Eye Wear | Yes |
Application | For high volume, low pressure pneumatic applications |
