Crimping and Cutting Tool for Connectors
SKU: 1005
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
Downloads

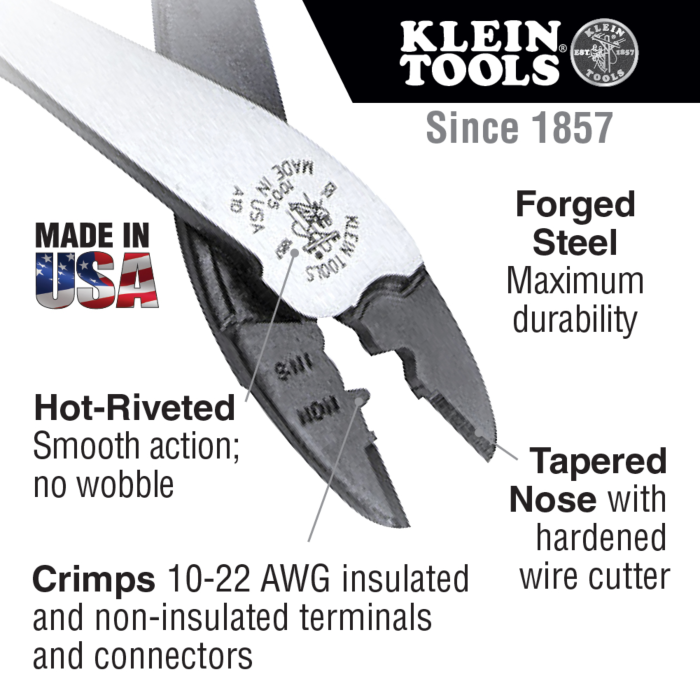

The Klein Tools Crimping and Cutting Tool crimps both insulated and non-insulated 10-22 AWG terminals and connectors. The tapered nose which is great when working in tight spaces. The wire cutter in the nose specially hardened for long life.
- Crimper crimps 10 to 22 AWG insulated and non-insulated terminals
- Cutting and Crimping Tool has specially hardened wire cutter in nose
- Tapered nose design for working in confined spaces
- Crimping die marked for insulated and non-insulated solderless terminals and connectors
- Made in USA
- Plastic-dipped, cushioned handles for comfort
- Always wear approved eye protection.
- NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
| Brand | Klein Tools |
|---|---|
| UPC | 092644742040 |
| Store Location (Lititz, PA) | Aisle 08, Section C4 |
| Package Length (in) | 7.80" |
| Package Width (in) | 3.40" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | 1005 |
| Handle Color | Red |
| Handle Finish | Plastic-Dipped |
| Crimping Capacity | 10-22 AWG Insulated and Non-Insulated Terminals |
| Application | Cuts and Crimps Wire 10-22 AWG |
| Crimps | Yes |
| Cutting Capacity | 10-22 AWG Insulated and Non-Insulated Terminals |
| Overall Length (cm) | 24.4 |
| Weight (g) | 363 |
| Weight (oz) | 12.8 |
| Overall Length (Inch) | 9.6 |
| Height | 1.0000 in |
| Width | 4.0000 in |
| Depth | 9.7500 in |
| Weight | 0.8000 lbs |
