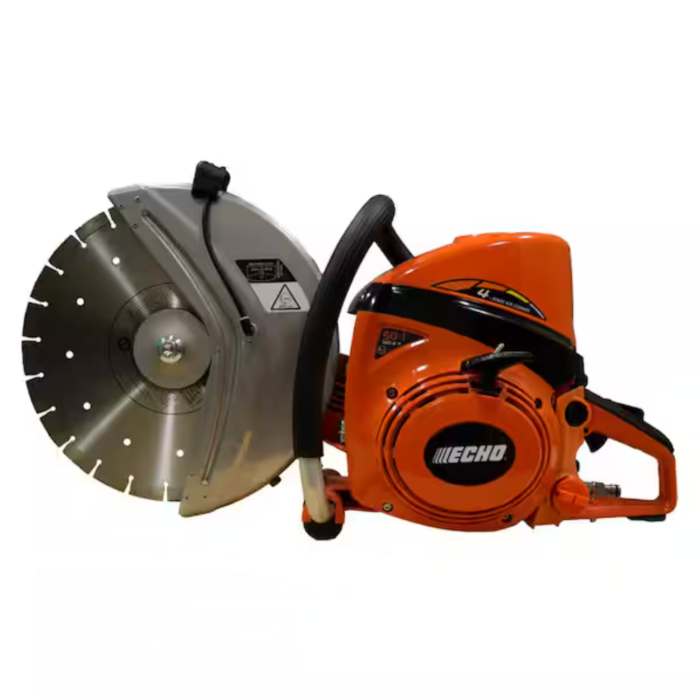

Easy cuts for hardscape pros, the best-in-class CSG-7410 concrete saw features a high drive ratio for improved cutting through thick masonry blocks and dense concrete. Its durable, user-friendly design includes a four-stage air filtration system and a quick-release hose adapter, powered by a 73.5 cc professional-grade, 2-stroke engine. It is equipped with a decompression valve for easier starter pulling effort and a purge bulb for fresh fuel to the carburetor. It also boasts a reversible cutting head for cutting near walls or close to the ground, a brass water valve to control water flow, an abrasive wheel, a momentary stop switch, and a side-access belt tensioner for easy adjustments.
- High drive ratio
- 73.5 cc professional-grade, 2-stroke engine
- Includes a quick-release hose adapter
- Decompression valve for easier starter pulling effort
- Purge bulb provides fresh fuel to carburetor
- Reversible cutting head allows more mobility in cutting
- Abrasive wheel included
- Four-stage air filtration system protects engine from harmful dust ingestion
- Momentary stop switch
- Easy belt adjustment
| Brand | Echo |
|---|---|
| UPC | 743184016183 |
| Manufacturer Part Number | CSG-7410-14 |
| Engine Displacement | 73.5 cc |
| Max. Engine Speed | 9,800 rpm |
| Max. Spindle Speed | 3,820 rpm |
| Drive System Ratio | 2.6 |
| Arbor Size | 20 & 25.4 mm |
| Dry Weight | 22.7 lb |
| Fuel Capacity | 23.7 fl oz |
| Wheel Diameter | 14" |
| Start/Stop Switch | Momentary |
| Decompression Valve | Yes |
| Purge Bulb | Yes |
| Choke w/Fast Idle | Yes |
| Max. Cutting Depth | 4.9" |
