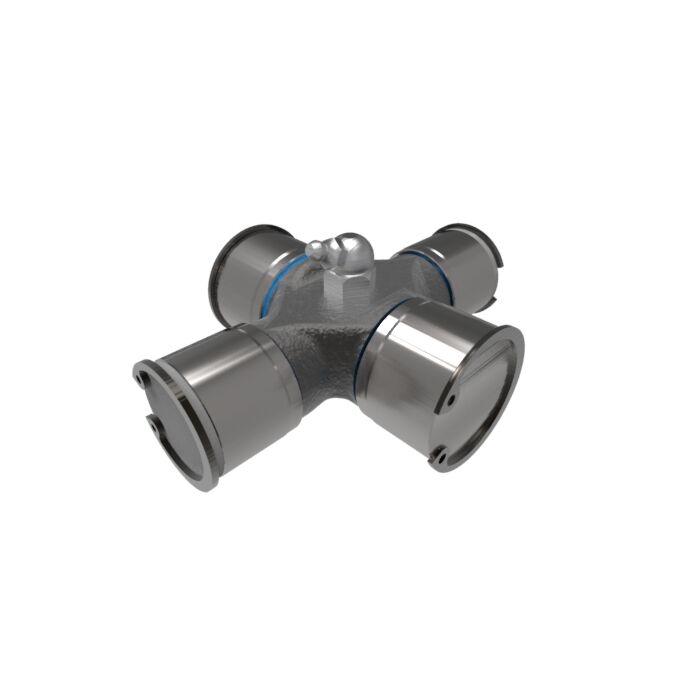

Cross and Bearing R-Kit for 2480 Series CV Shaft
SKU: 2007694
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$159.65
Features
Specifications
CV cross and bearing R-kit with 8 hour lubrication intervals for 2480 Series CV shaft
- Lubrication Interval: Up to 8 hours
- Type: R-Kit (Standard)
- Style: Unequal Arm
- Fits: 2480 Series
- Cap to Cap Overall Length: 76mm & 94mm
- Bearing Diameter: 27mm & 32mm
| Brand | Weasler |
|---|---|
| UPC | 728357301686 |
| Store Location (Lititz, PA) | Aisle 08, Section W3 |
| Package Length (in) | 3.80" |
| Package Width (in) | 1.80" |
| Package Height (in) | 4.20" |
| Manufacturer Part Number | 200-7694 |
| Length | 3.701 inch |
| Height | 1.26 inch |
| Width | 2.988 inch |
| Weight | 1.5 lb |
| Series | AW35-80 |
| Connection 1 Description | SNAP RING |
| Bearing Diameter 1 | 1.063" |
| Bearing Span 1 | 3.701" |
| Bearing Diameter 2 | 1.26" |
| Bearing Span 2 | 2.988" |
| Horsepower at 540 RPM | 57 hp |
| Horsepower at 1000 RPM | 87 hp |
| Lubrication Interval | Up to 8 hours |
| Type | R-Kit (Standard) |
| Style | Unequal Arm |
| Fits | 2480 Series |
| Cap to Cap Overall Length | 76mm & 94mm |
| Bearing Diameter | 27mm & 32mm |
