Weasler

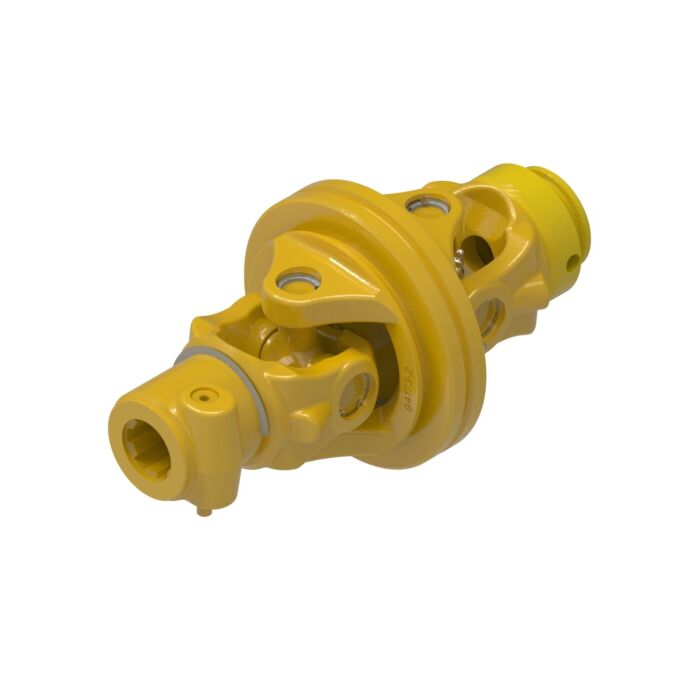

AW21-80 series CV wide angle universal joint with 1 3/8-6 spline, quick disconnect connection and 34 mm lemon, roll pin connection

SKU: 15507406 | Location: Aisle 08, Section W2
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 2 In stock

Features
The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
  • Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
  • Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
  • Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
  • Same component designs used for Weasler's domestic and metric product lines.
Specifications
Brand Weasler
UPC 728357306674
Store Location (Lititz, PA) Aisle 08, Section W2
Package Length (in) 12.00"
Package Width (in) 6.50"
Package Height (in) 6.50"
Manufacturer Part Number 15507406
Length 11.74 inch
Weight 17.64 lb
Series AW21-80
Outside Diameter 6.1"
Bore 1 1.375"
Bore 1 Description 1 3/8-6 SPLINE
Connection 1 Description QUICK DISCONNECT
Bore 2 1.388"
Bore 2 Description 34 MM LEMON
Connection 2 Description ROLL PIN
Compressed Length 3.74"
Extended Length 3.74"
Compressed Oal 11.74"
Extended Oal 11.74"
Bearing Diameter 0.938"
Bearing Span 3.583"
Horsepower at 540 RPM 41 hp
Horsepower at 1000 RPM 63 hp
