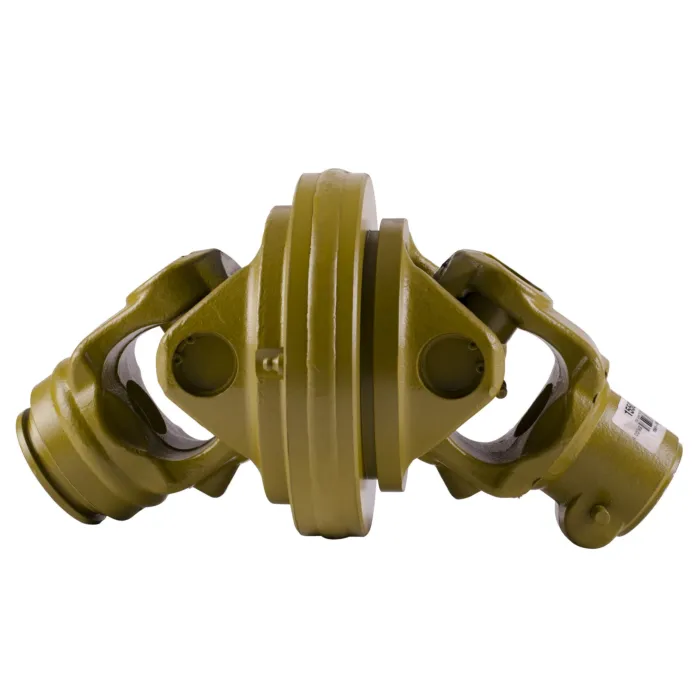

The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
- Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
- Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
- Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
- Same component designs used for Weasler's domestic and metric product lines.
Brand | Weasler |
---|---|
UPC | 728357310138 |
Store Location (Lititz, PA) | Aisle 08, Section W3 |
Package Length (in) | 10.60" |
Package Width (in) | 7.60" |
Package Height (in) | 7.20" |
Manufacturer Part Number | 15507951 |
Length | 13.68 inch |
Weight | 34.65 lb |
Series | AW36-80 |
Outside Diameter | 6.65" |
Bore 1 | 1.375" |
Bore 1 Description | 1 3/8-6 SPLINE |
Connection 1 Description | QUICK DISCONNECT |
Bore 2 | 2.02" |
Bore 2 Description | 51 MM STAR |
Connection 2 Description | ROLL PIN |
Compressed Length | 4.65" |
Compressed Oal | 13.68" |
Bearing Diameter | 1.417" |
Bearing Span | 3.504" |
Horsepower at 540 RPM | 77 hp |
Horsepower at 1000 RPM | 119 hp |
