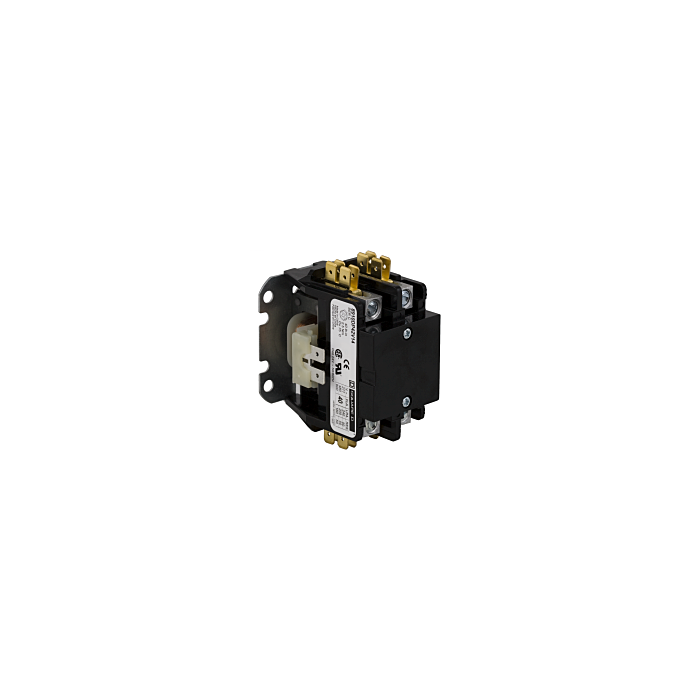

Definite Purpose Contactor Type DP 20A, 2-Pole, 24VAC@50/60Hz
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
| Brand | Square D |
|---|---|
| UPC | 785901080466 |
| Store Location (Lititz, PA) | Aisle 04, Section D1 |
| Package Length (in) | 3.20" |
| Package Width (in) | 1.80" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | 8910DP12V14 |
| Commercial Status | Commercialised |
| Product or component type | Definite Purpose Contactor |
| Line Rated Current | 20 A |
| Motor power hp | 1 hp 115 V AC 1 phase |
| Poles description | 2P |
| Pole contact composition | 2 NO |
| Control circuit voltage | 24 V AC 50/60 Hz |
| Product certifications | UL listed |
| Locked rotor rated current | 100 A 277 V AC |
| System Voltage | 600 V AC |
| Phase | 1 phase |
| Electrical connection | Quick connect terminals |
| Range of product | DP |
| Category | 21352 - 8910 DP 12 |
| Discount Schedule | CP1B |
| GTIN | 00785901080466 |
| Nbr. of units in pkg. | 1 |
| Product availability | Stock - Normally stocked in distribution facility |
| Returnability | Y |
| Country of origin | CN |
| Sustainable offer status | Not Green Premium product |
| RoHS (date code: YYWW) | Will not be Compliant |
| REACh | Reference not containing SVHC above the threshold |
| Warranty period | 18 months |
8910DP42V14 Definite Purpose Contactor SILENT 2011-09-22 gif (3 KB)
8910DP42V14 Definite Purpose Contactor SILENT 2011-09-22 jpeg (16 KB)
DEFINITE PURPOSE CONTACTORS (2 POLE) SERIES C DP 20-40A English 2012-03-06 x-dwf (32 KB)
Definite Purpose Contactor (2pole) English 2015-06-03 x-dwf (30 KB)
DEFINITE PURPOSE CONTACTORS (2 POLE) SERIES C DP 20-40A English 2012-03-06 pdf (69 KB)
Definite Purpose Contactor (2pole) English 2015-06-03 pdf (33 KB)
Class 8965 8911 and 8910 Type DP Contactors English 2012-03-06 pdf (201 KB)
Class 8910 Type DP Definite Purpose Contactors English 2012-03-06 pdf (201 KB)
