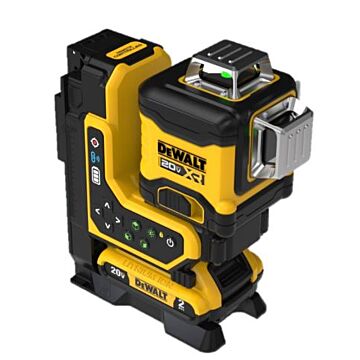

This 230 ft./330 ft. 3x360 laser is the go-to jobsite laser. Now offered on the 20V MAX battery platform, this laser will seamlessly integrate with the tools you already have on the job. This long-reaching laser has a range of up to 330 ft. when used with a detector (sold separately). Achieve precise positioning with a fine-adjust knob and supreme accuracy with 1/8 in. at 30 ft. Use for a full work day with a 10 hour runtime when using a 20V MAX 2.0Ah battery (sold separately). The kit includes the 3x360 Green Laser, target card, drop ceiling attachment, a TSTAK compatible storage case and a user manual.
- PRECISE POSITIONING: Fine adjustment knob
- EXTENDED RUNTIME: 10 hours of runtime on single 20V MAX 2.0Ah battery and longer runtime with larger capacity batteries
- Integrated magnetic pivoting base with 1/4" - 20, 5/8" - 11 thread for use with tripod (DW0737 sold separately)
- DEBRIS AND WATER RESISTANT: IP54 rating
- JOBSITE DURABILITY: Overmolded case and IP54 rating for dust and splash protection (Applies to tool, not battery or charger)
- BACKED BY WARRANTY: 3 Year Limited Warranty, 1 Year Free Service and 90 Day Money Back Guarantee
- 230 ft. visible distance and 330 ft. max detector range
Brand | DEWALT |
---|---|
UPC | 076174440621 |
Store Location (Lititz, PA) | Aisle 25, Section I4 |
Package Length (in) | 5.00" |
Package Width (in) | 5.40" |
Package Height (in) | 5.40" |
Manufacturer Part Number | DCLE34030GB |
Country of Origin | China |
Height | 7.000 in |
Length | 17.000 in |
Width | 13.000 in |
Weight | 8.100 lbs |
Voltage | 20 V V |
Battery Type | 20V MAX* Lithium Ion |
Battery Qty | 1 |
Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
Number Of Batteries Required | 1 |
Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. | ** With detector (DW0892G), sold separately | *** 10 hours of runtime on average, using DEWALT 20V MAX* 2.0Ah battery (sold separately) with all 3 laser lines in use | **** 230 ft (70m) visible range, 330 ft (100m) maximum range on average when used with DW0982G detector (sold separately). |
Prop 65 Generic Warning | No |
Warranty | 3LW1YS90D |
Accuracy | ±1/8 in. |
Automatic | Yes |
Bare Tool | Yes |
Case Type | Hard |
Individual Vs. Set (Syndigo) | INDIVIDUAL |
Ingress Protection (Ip) Rating | IP54 |
Laser Color | Green |
Maximum Distance | 130 Ft |
Mounting Method | Tripod |
Project Beam 360 Degrees | Yes |
Self Leveling | Yes |
Tripod Included | Yes |
