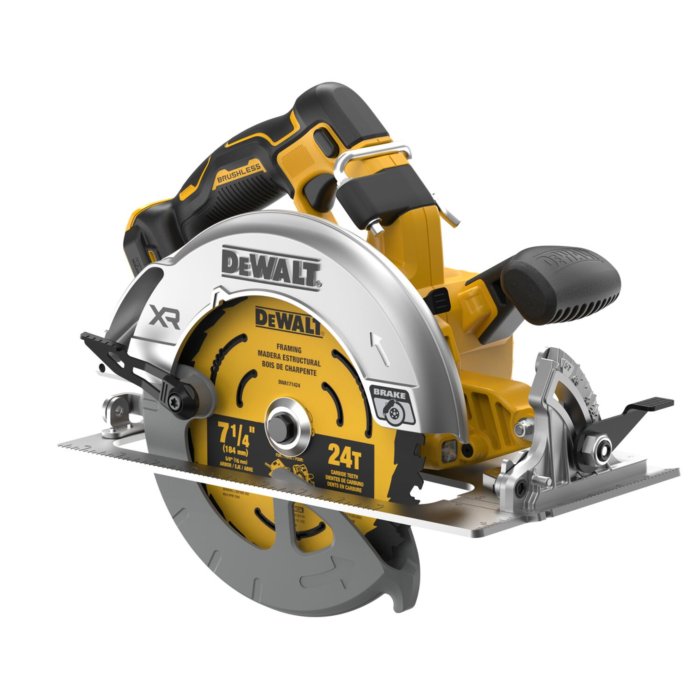

Cut through tough applications with our most powerful 20V MAX circular saw . Featuring a powerful brushless motor that delivers up to 1,700 MWO and up to 368 cuts per charge, the 20V MAX XR 7-1/4 in. Circular Saw is designed to make accurate cuts quickly. With a blade oriented to the right of the motor and a top handle position design, this circular saw is built for ease-of-use on challenging jobsites. This saw comes equipped with an electronic brake that helps stop the blade when the trigger is released. This durable, high-performance circular saw provides smooth, accurate cuts and a bevel capacity of 57° with stops at 45° and 22.5°. Battery & Charger Sold Separately
- Convenient onboard LED help brighten your workspace with additional illumination provided by the onboard led.
- Electronic Brake Avoid wide, imprecise cuts with an automatic electric brake designed to stop the blade from coasting after the trigger switch is released.
- Up to 368 cuts per charge - make fast cuts with a powerful brushless motor that delivers up to 5,500 RPM (no-load).
- High versatility - take on a wide range of materials with a maximum depth of cut of 2-9/16 in. at a 90° and a maximum depth of cut of 2 in. at a 45°.
- Quick storage - hang the tool from the integrated rafter hook that offers convenient storage.
- Efficient dust collection - help minimize dust during cutting with the optional dust port featuring compatibility with the DEWALT AIRLOCK system or a standard 35mm dust extractor (sold separately).
- Simplify asset management - track and manage with the TOOL CONNECT chip ready system (chip sold separately) and the site manger app.
- Our most powerful 20V MAX circular saw - cut through tough applications with up to 1,700 mwo.
- Part of our best performing line of 20V MAX power tools - innovative power tools designed to deliver certainty for the worlds toughest pros.
- (1) 20V MAX* XR® Brushless Cordless 7-1/4 in. Circular Saw
- *Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. | †Rated MWO | **2x6 SPF using DCB2108 battery (sold separately).
| Brand | DEWALT |
|---|---|
| UPC | 885911967853 |
| Store Location (Lititz, PA) | Aisle 22, Section M3 |
| Package Length (in) | 9.40" |
| Package Width (in) | 15.40" |
| Package Height (in) | 9.60" |
| Manufacturer Part Number | DCS590B |
| Country of Origin | Mexico |
| Height | 9.600 in |
| Length | 15.350 in |
| Width | 8.420 in |
| Weight | 10.080 lbs |
| Product Type | CIRCULAR SAW |
| Cordless Vs. Corded | Cordless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Charger Included | No |
| Warranty | 3LW |
