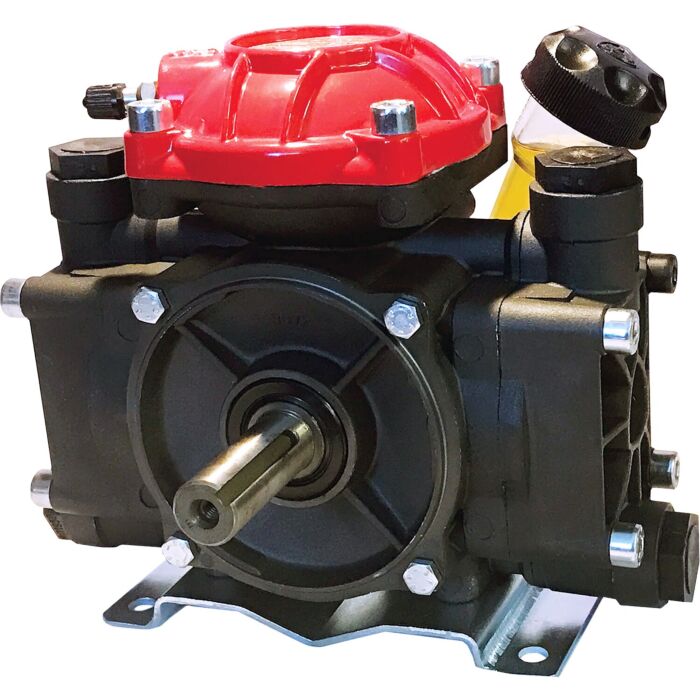

Annovi reverberi ar252-sp/sgc 650 rpm semi-hydraulic two diaphragm alternating volumetric pump for use in gardening or semi-professional agricultural sector, trolley-mounted in combination with electric motors or internal combustion engines for gardening and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
- Parts in contact with pumped liquids in plastic-coated aluminum and stainless steel
- Diaphragms in nbr, h.p.d.s., desmopan or viton
- Seals in nbr or viton
- Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
- Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
- New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
- Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
Brand | AR |
---|---|
Store Location (Lititz, PA) | Aisle 11, Section X5 |
Package Length (in) | 14.00" |
Package Width (in) | 11.00" |
Package Height (in) | 11.00" |
Manufacturer Part Number | AR252-SP/SGC |
Nominal Size | 3/4 in Inlet x 1/2 in Outlet |
Connection Type | NPT |
Flow Rate | 6 gpm |
Diaphragm Material | NBR |
Pressure Rating | 362 psi |
Temperature Rating | 140 deg F |
Power Rating | 1.4 hp |
