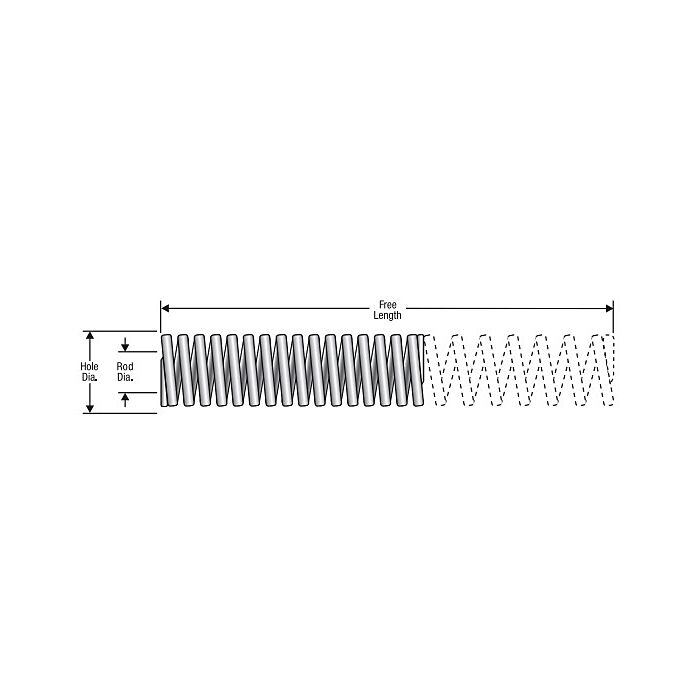

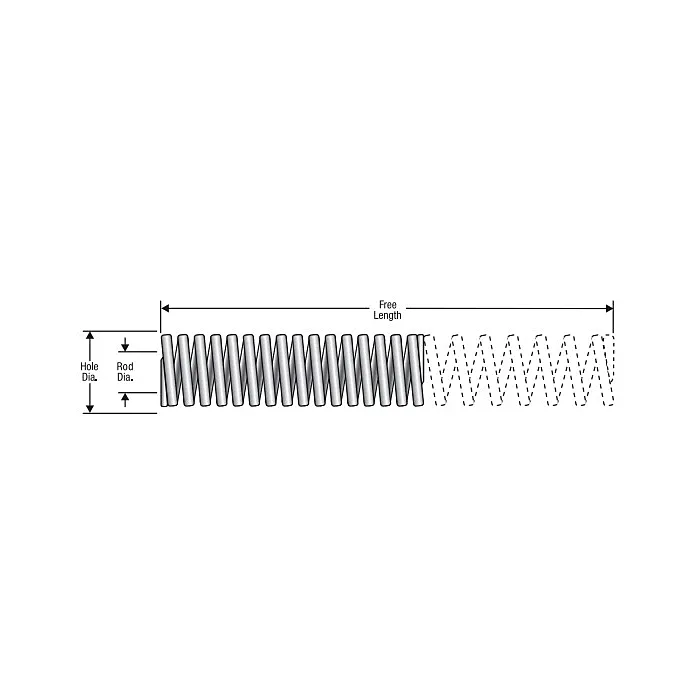

5 in 1-1/4 in 5/8 in Compression Die Spring
SKU: D83
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.99
Features
Specifications
Compression Die Spring, Medium Duty, 5 in Length, 1-1/4 in Outside Diameter, 5/8 in Inside Diameter, 0.292 in Wire Diameter, 360 lb/in Spring Rate, 1-1/4 in Maximum Deflection, Oil Tempered Steel
| Brand | Century Spring |
|---|---|
| Store Location (Lititz, PA) | Aisle 10, Section W5 |
| Package Length (in) | 6.00" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | D-83 |
| Type | Medium Duty |
| Length | 5 in |
| Outside Diameter | 1-1/4 in |
| Inside Diameter | 5/8 in |
| Wire Diameter | 0.292 in |
| Spring Rate | 360 lb/in |
| Maximum Deflection | 1-1/4 in |
| Material | Oil Tempered Steel |
