2-1/2 in 1-1/4 in 5/8 in Compression Die Spring
SKU: D78
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$22.99
Features
Specifications

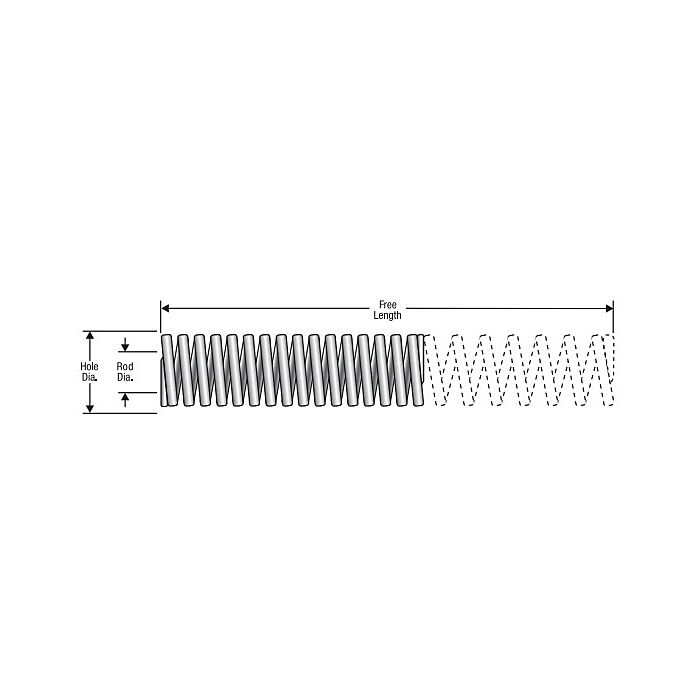

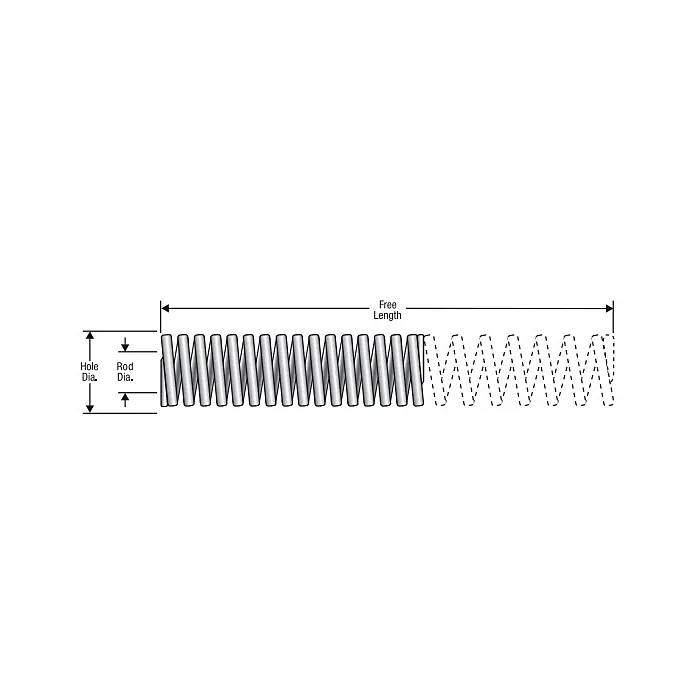

Compression Die Spring, Medium Duty, 2-1/2 in Length, 1-1/4 in Outside Diameter, 5/8 in Inside Diameter, 0.292 in Wire Diameter, 800 lb/in Spring Rate, 0.63 in Maximum Deflection, Oil Tempered Steel
| Brand | Century Spring |
|---|---|
| Store Location (Lititz, PA) | Aisle 10, Section W5 |
| Package Length (in) | 2.60" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | D78 |
| Type | Medium Duty |
| Length | 2-1/2 in |
| Outside Diameter | 1-1/4 in |
| Inside Diameter | 5/8 in |
| Wire Diameter | 0.292 in |
| Spring Rate | 800 lb/in |
| Maximum Deflection | 0.63 in |
| Material | Oil Tempered Steel |
