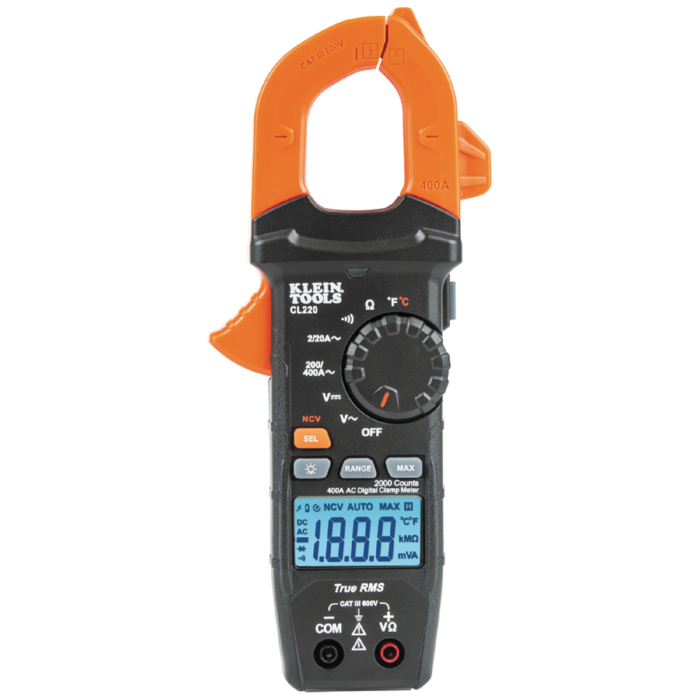

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Hold, Data Hold, and Max value
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Brand | Klein Tools |
---|---|
UPC | 092644692857 |
Store Location (Lititz, PA) | Aisle 08, Section C5 |
Package Length (in) | 10.00" |
Package Width (in) | 4.20" |
Package Height (in) | 2.60" |
Manufacturer Part Number | CL220 |
Overall Length | 8.45" (21.5 cm) |
Voltage | 600 V AC/DC |
Batteries | 3 x AAA |
Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
Temperature Range | -40° - 1832°F (-40° - 1000°C) |
Jaw Size | 1.6" (4.1 cm) |
Auto-Power Off | Yes |
DC Voltage | 600 V |
Overall Width | 3.5" (8.9 cm) |
Application | Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple |
Display | 2000 Count Backlit LCD |
Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature |
Current | 400 A AC |
Ohms (Resistance) | 20 MΩ |
Drop Protection | 6.6' (2 m) |
Included | Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
Overall Height | 1.5" (3.8 cm) |
AC Voltage | 600 V |
Material | ABS/Electronics |
DC Polarity Indicator | Yes |
Type | Auto Ranging TRMS Clamp with Temperature |
Height | 1.5060 in |
Width | 3.5120 in |
Depth | 8.4500 in |
Weight | 0.6130 lbs |
