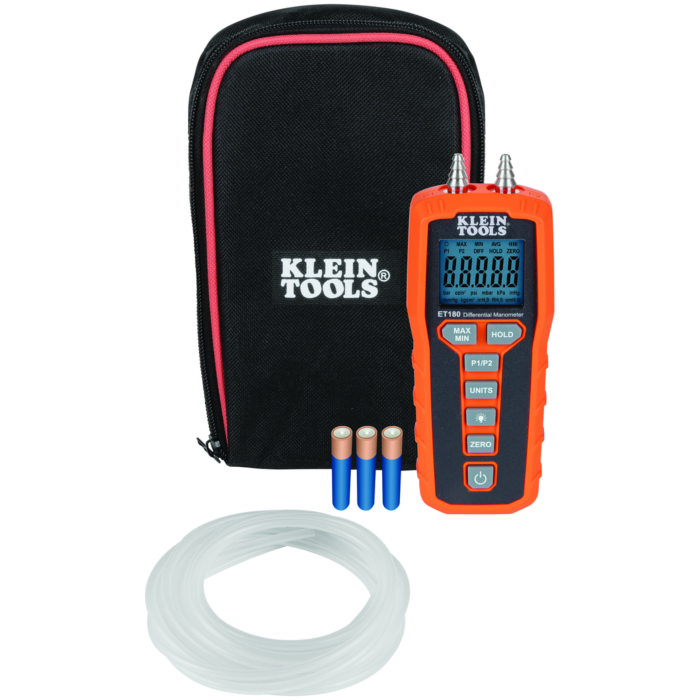

Digital Differential Manometer
SKU: ET180
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$119.99
Features
Specifications
Downloads
The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.
**The meter is NOT insulated. Avoid contact with areas where energized conductive elements may be present. Shut off power to the area before starting measurements. Always wear approved eye protection.
- Measures air and gas pressure
- Range of +/- 60 inH2O and full scale accuracy of +/-1.5%
- Strong magnet on back for hands-free operation
- Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
- Calculates minimum, maximum, and average values
- LCD is backlit for easy viewing in low light conditions
- Auto-power off feature conserves battery life
- Hold button locks current reading on the display
| Brand | Klein Tools |
|---|---|
| UPC | 092644693366 |
| Store Location (Lititz, PA) | Aisle 10 End Cap |
| Package Length (in) | 1.38" |
| Package Width (in) | 2.47" |
| Package Height (in) | 6.19" |
| Manufacturer Part Number | ET180 |
| Measurement Units | bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O |
| Display | Backlit LCD |
| Application | Measure Static and Differential Pressure |
| Accuracy | +/-1.5% Full Scale |
| Material | ABS, Stainless Steel |
| Auto-Power Off | Yes |
| Overall Length | 2.47" (6.3 cm) |
| Standard | Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified |
| Number of Ports | 2 |
| Type | Differential Pressure |
| Overall Height | 6.19" (15.7 cm) |
| Pressure Measurement Range | +/- 60 inH2O |
| Modes | P1, P2, Differential |
| Connector Type | Tapered Stainless Steel Ports from 1/8" to 5/15" |
| Low Battery Indicator | Yes |
| Overall Width | 1.38" (3.5 cm) |
| Batteries | 3 x AAA |
| Included | Manometer; 6.56' (2 m) x 1/8" (3 mm) Inside Diameter Silicon Tubing; 3 x AAA Batteries; Pouch; Instruction Manual |
| Minimum Pressure Reading (wc) | -60.0 |
| Maximum Pressure (psi) | 2.16 PSI |
| Temperature Range | 32° to 122° F (0° to 50° C) |
| Maximum Pressure Reading (wc) | 60.0 |
| Height | 1.3780 in |
| Width | 2.4710 in |
| Depth | 6.2400 in |
| Weight | 0.3700 lbs |
