Features
Specifications

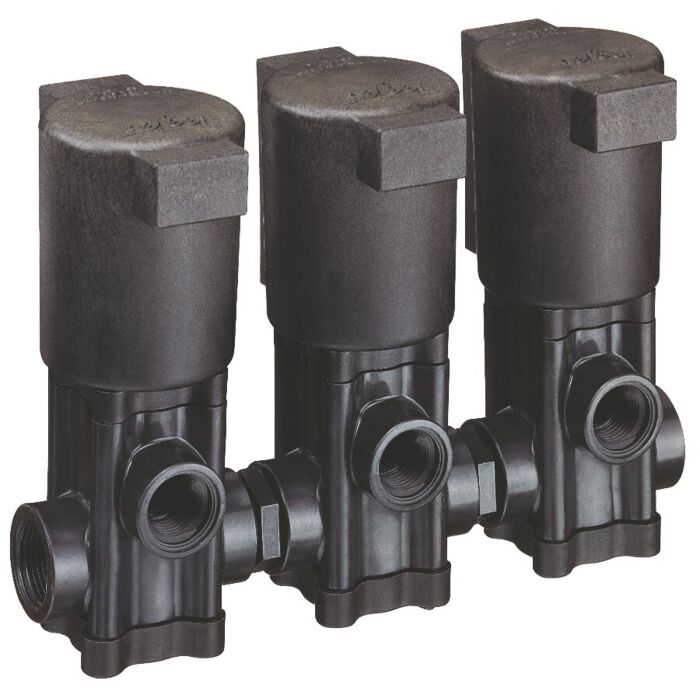

The aa144p-3 electric solenoid valve has a polypropylene body for chemical resistance. however, you should review the manual before using a new chemical with this product. like other solenoid valves, this product is controlled by an electric current. the electrical connections of the valve are protected with a cap to help reduce potential damage and corrosion. the mounting slot, which is integrated in the valve, can have a 6mm bolt or a 10 mm hex head.
- 3 valves ganged together
- Max pressure: 100 psi
- Max flow: 14 gpm
- Inlet: 3/4 in npt
- Outlet to boom: 1/2 in npt
- Continuous by-pass: 3/4 in npt
- Distance between mounting slots: 3ó
- 2.5 amp current draw
- Weight: 10 lbs
Brand | TeeJet |
---|---|
Store Location (Lititz, PA) | Aisle 08, Section T1 |
Package Length (in) | 3.50" |
Package Width (in) | 9.00" |
Package Height (in) | 6.75" |
Manufacturer Part Number | AA144P-3 |
Type | Manifold Electric |
Nominal Size | 1/2 x 3/4 in |
Connection Type | NPT |
Pressure Rating | 100 psi |
Flow Rate | 14gpm |
Body Material | Polypropolyne |
Dimensions | 8.75 in W x 7.5 in H |
