FTZ Industries

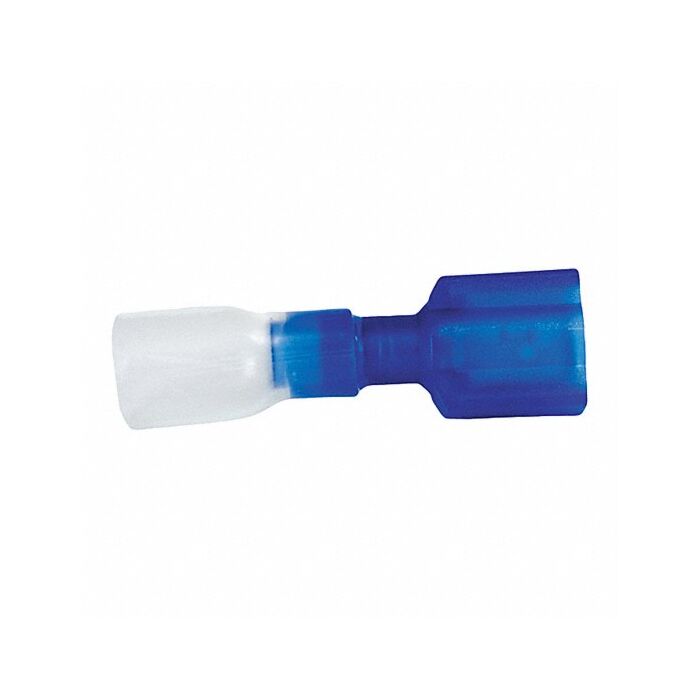

16-14 AWG 600 V 0.097 in ID Heat-Shrink Male Disconnect Terminal
SKU: 30387C50
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$37.99
Features
Specifications
Male Disconnect Terminal, Heat-Shrink, 16-14 AWG Wire, 600 V, 0.097 in ID Barrel, Funnel Entry Barrel, Crimp, Fully Insulated, Nylon Insulation, 0.25 x 0.032 in Tab, Copper, Tin Contact, Blue, 194 deg F, 1.35 in Length
- Crimp and seal style terminals are the most comprehensive and highest quality line of crimp and seal heat shrinkable connectors in todays market
- It has seamless tubular splices which ensure mechanical and electrical integrity under severe conditions
- The brazed seam terminals will not split open under the most extreme installation and operating conditions
- The heat shrink tubing which is 31 dual wall tubing with adhesive lining provides a waterproof seal with durable abrasion resistance
| Brand | FTZ Industries |
|---|---|
| UPC | 847759098298 |
| Store Location (Lititz, PA) | Aisle 14, Section N3 |
| Package Length (in) | 3.20" |
| Package Width (in) | 2.60" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | 30387-C50 |
| Type | Heat-Shrink |
| Wire Size | 16-14 AWG |
| Voltage Rating | 600 V |
| Barrel Size | 0.097 in ID |
| Barrel Type | Funnel Entry |
| Connection Type | Crimp |
| Insulated/Non-Insulated | Fully Insulated |
| Insulation Material | Nylon |
| Tab Size | 0.25 x 0.032 in |
| Material | Copper |
| Finish | Tin Contact |
| Color | Blue |
| Temperature Rating | 194 deg F |
| Length | 1.35 in |
