Dutton-Lainson Company

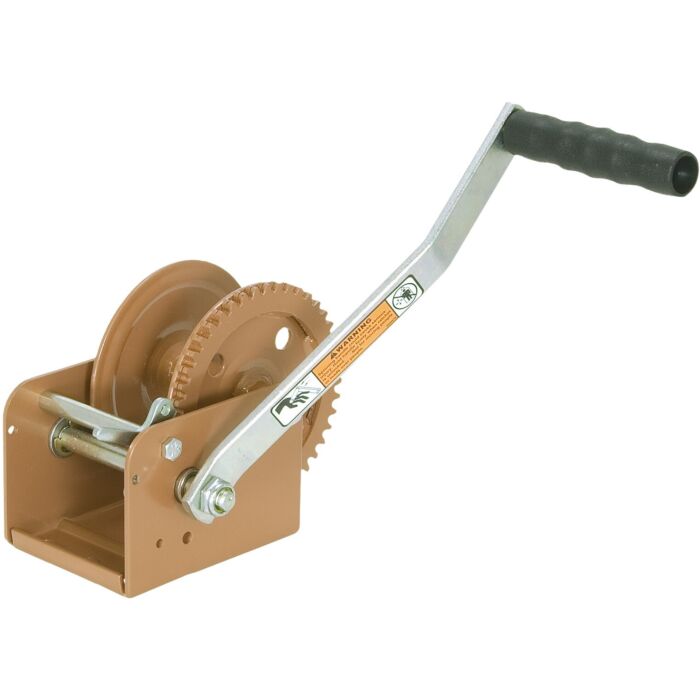

Pulling Winch, 1400 lb Pull, 4.40:1 Gear Ratio
SKU: DL1402
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$69.99
Features
Specifications
Reinforced arc-welded reels, embossed, reinforced bases, high carbon steel gears throughout. Heavy steel handles have molded grips. All drive shafts have permanently lubricated bearings. Load matched gear ratios for easier cranking, hunting tooth gears system. Frees wheel when ratchet is disengaged. Base plates fit BIA Standard mounting hole pattern for easy installation. Equipped with holes in reel for easy installation of web strap. Powder-coated metallic copper bronze finish. Not for movement of human beings. Wire rope not included.
| Brand | Dutton-Lainson Company |
|---|---|
| UPC | 085077153019 |
| Store Location (Lititz, PA) | Aisle 11, Section I1 |
| Package Length (in) | 6.20" |
| Package Width (in) | 7.00" |
| Package Height (in) | 9.40" |
| Manufacturer Part Number | 15301 |
| Control Type | Handle |
| Dimensions | 5-1/8" L x 5-1/4" W |
| Gear Ratio | 4.401 |
| Gear Type | Spur |
| Material | Steel |
| Pull Capacity | 1400 lb |
| Wire Rope Diameter | 1/4" |
| Wire Rope Length | 40 ft |
