Festool

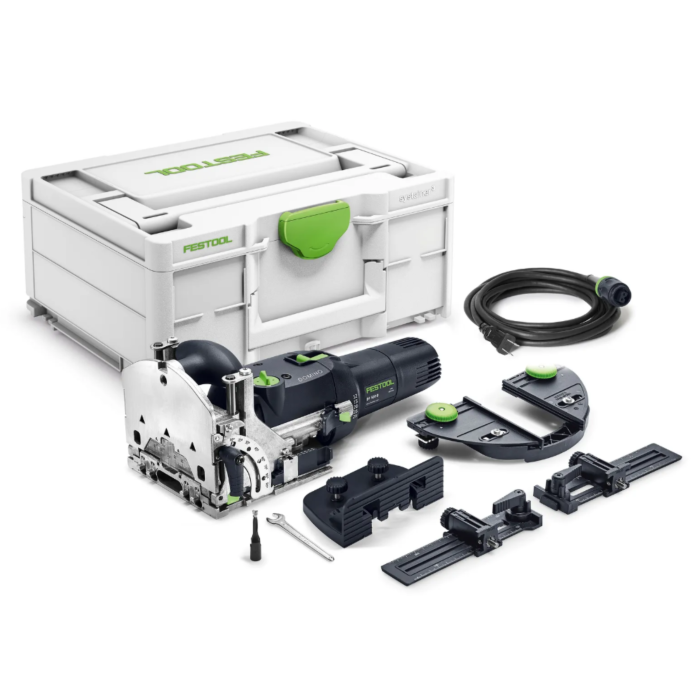

DF 500 DOMINO Joiner RQ-Set

SKU: F578544
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
Features chevron-down chevron-up
The DOMINO system seamlessly combines the best features of various wood joints. At its core, the DOMINO joiner and Tenons provide strong, twist-proof connections with exceptional speed and accuracy. The system's pendulum cutting motion ensures clean, precise cuts, carving elongated mortises that lock in tightly and maintain perfect alignment. The DOMINO Tenons themselves merge the strength of a traditional mortise-and-tenon joint with the flexible application of biscuits, making them ideal for everything from fine furniture to heavy-duty construction. From the first cut to final assembly, the DOMINO system offers the stability and versatility you need for confident joinery, whether you're working indoors or out, on delicate trim or thick panels.
  • The unique pendulum milling action delivers smooth, accurate mortises with minimal effort
  • Built-in indexing pins make repeat tenon placement fast and foolproof
  • Creates twist-proof, rock-solid joints that hold tight
  • Tenons range from 4 x 20 mm to 10 x 50 mm and come in beech or weatherproof sipo—ready for indoor or outdoor builds
  • Routing depths are preset to match tenon sizes and panel thickness—no guesswork needed
  • Every accessory is designed to work seamlessly with the full DOMINO lineup
Specifications chevron-down chevron-up
Brand Festool
Date Added Jan 15, 2026
Store Location (Lititz, PA) Aisle 26, Section M6
Package Length (in) 15.47"
Package Width (in) 11.69"
Package Height (in) 7.68"
Manufacturer Part Number 578544
Power consumption 420 watt
Idle engine speed 25,500 rpm
Mitre routing 0 - 90 °
Drive type 120 VAC
Weight 7.72 lb
Routing Height Adjustment 1/8" - 1-3/16"
Max. Routing Depth 1-1/16"
Dust Extraction Connection Diameter 1-1/16"
Cable Length 13.123 ft
DOMINO Slot Cutter Diameter 3/16", 1/8", 1/4", 5/16", 3/8"
Depth Stop for Routing Depth 12, 15, 20, 25, 28 mm
