ProSource

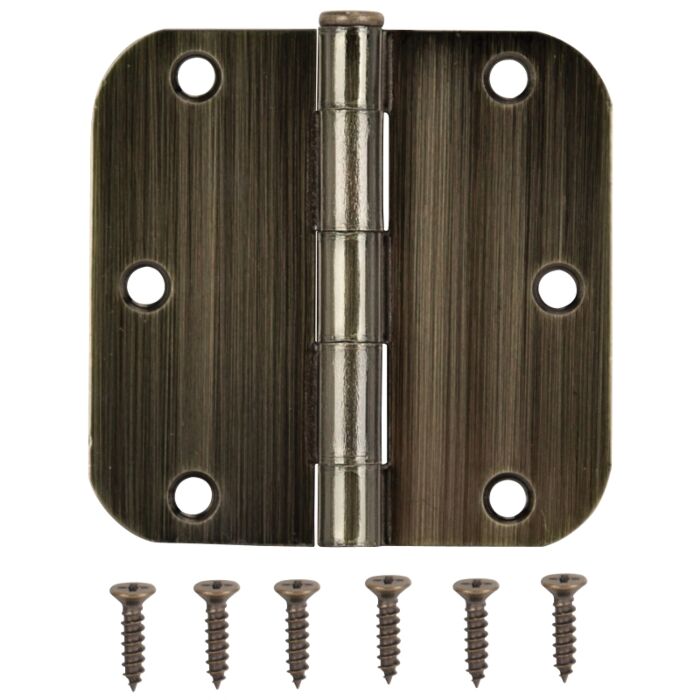

20347ABX Door Hinge, Steel, Antique Brass, Loose Pin, 180 deg Range of Motion, Screw Mounting
SKU: 20347ABX
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$4.09
Features
Specifications
The ProSource door hinge offers a unique and creative hardware solutions for your home. It is made of steel and measures 2.2 mm thick with 5-knuckles and a loose pin.
- Antique Brass finish
| Brand | ProSource |
|---|---|
| UPC | 045734927032 |
| Store Location (Lititz, PA) | Aisle 19, Section I4 |
| Package Length (in) | 0.50" |
| Package Width (in) | 5.51" |
| Package Height (in) | 5.71" |
| Color | Antique Brass |
| Corner Radius | 5/8 in |
| Dimensions | 3-1/2 x 3-1/2 in |
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 2.2 mm |
| Door Leaf Width | 3-1/2 in |
| Door Thickness | 1-3/4 in |
| Finish | Antique Brass |
| Includes | Screws |
| Material | Steel |
| Mounting Hole Diameter | 7 mm |
| Mounting Type | Screw |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 6 mm |
| Pin Type | Loose |
| Range of Motion | 180 deg |
