DOT Tube Type B

Type A Air Brake Tubing (Black) 1/2 in.

Type A Air Brake Tubing (Black) 3/8 in.

Type A Air Brake Tubing (Black) 5/8 in.

SKU: DTB-
SKU: DOTB08ABK
SKU: DOTB06ABK
SKU: DOTB10ABK
Select options to see availability
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down

Options

This product must be picked up in-store.
This product must be picked up in-store.
This product must be picked up in-store.
Features chevron-down chevron-up

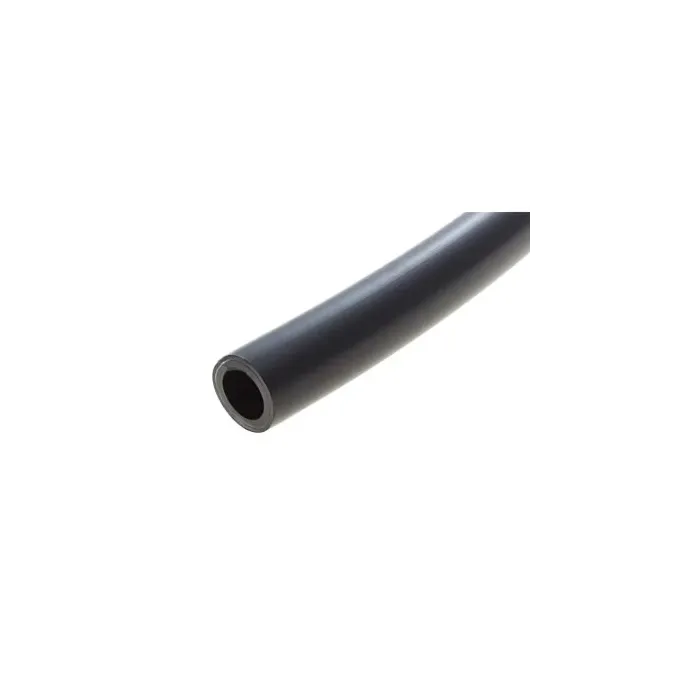

This Type B Non-Reinforced Air Brake Tubing, designed for reliable performance in air brake systems. The 1/2-inch nominal tubing is made from black nylon with a 0.062-inch thick wall, supporting a working pressure of 150 psi. It is built to withstand temperatures ranging from -40 to 200 degrees F, and offers robust resistance to cold weather, abrasion, UV, and ozone.
This Type B Non-Reinforced Air Brake Tubing, designed for reliable performance in air brake systems. The 1/2-inch nominal tubing is made from black nylon with a 0.062-inch thick wall, supporting a working pressure of 150 psi. It is built to withstand temperatures ranging from -40 to 200 degrees F, and offers robust resistance to cold weather, abrasion, UV, and ozone.
This Type B Non-Reinforced Air Brake Tubing, designed for reliable performance in air brake systems. The 3/8-inch nominal tubing is made from black nylon with a 0.062-inch thick wall, supporting a working pressure of 150 psi. It is built to withstand temperatures ranging from -40 to 200 degrees F, and offers robust resistance to cold weather, abrasion, UV, and ozone.
This Type B Non-Reinforced Air Brake Tubing, designed for reliable performance in air brake systems. The 1/2-inch nominal tubing is made from black nylon with a 0.092-inch thick wall, supporting a working pressure of 150 psi. It is built to withstand temperatures ranging from -40 to 200 degrees F, and offers robust resistance to cold weather, abrasion, UV, and ozone.
Specifications chevron-down chevron-up
UPC 848879076159
Store Location (Lititz, PA) Aisle 06, Section W2
Type DOT Tubing
Diameter 1/2"
Style Type B
Color Black
Pressure Rating 150 psi
Material Nylon
UPC 848879076159
Store Location (Lititz, PA) Aisle 06, Section W2
Type DOT Tubing
Diameter 1/2"
Style Type B
Color Black
Pressure Rating 150 psi
Material Nylon
UPC 848879076050
Store Location (Lititz, PA) Aisle 06, Section W2
Type DOT Tubing
Diameter 3/8"
Style Type B
Color Black
Pressure Rating 150 psi
Material Nylon
UPC 848879076258
Store Location (Lititz, PA) Aisle 06, Section W2
Type DOT Tubing
Outer_diameter 5/8"
Style Type B
Color Black
Pressure Rating 150 psi
Material Nylon
