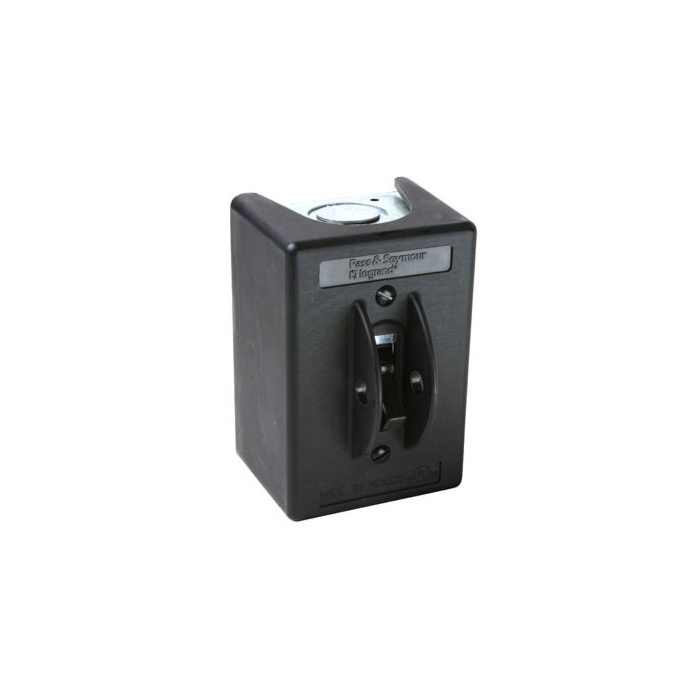

Double Pole, Single Phase AC Manual Motor Controller
SKU: 7812P
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$47.99
Features
Specifications
Downloads
Double Pole, Single Phase AC Manual Motor Controller
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007267662 |
| Store Location (Lititz, PA) | Aisle 04, Section D1 |
| Package Length (in) | 3.00" |
| Package Width (in) | 2.87" |
| Package Height (in) | 2.87" |
| Manufacturer Part Number | 7812PMD |
| Depth | 2.8 in |
| Color | Black |
| Height | 3.91 in |
| Finish | Matte |
| Width | 2.825 in |
| Material | Thermoplastic |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Load Type | Incandescent |
| Amperage | 30.0 A |
| Voltage | 600.0 V |
| Number of Gangs | 1 |
| Standard | CSA Listed |
| Switch Type | Toggle |
| Indoor/Outdoor | Indoor |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Type | Manual Controller |
| Wall Plate Included | No |
| Throw Type | Single Throw |
| Operating Cycles | 50000.0 |
| Requires Neutral Wire | Yes |
| Load Rating | 30 A @ 600 VAC |
| Number of Poles | Double Pole |
| Application Sector | Industrial |
| Environmental Conditions | UL94 V2 |
| Connection Location | Back and Side |
| Horsepower Rating | 20 HP @ 600 VAC |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Features | Heavy Duty Zinc Plated Steel Strap |
| Special Features | Double Pole, Single Phase AC Manual Motor Controller, suitable as Motor Disconnect |
