Burcam

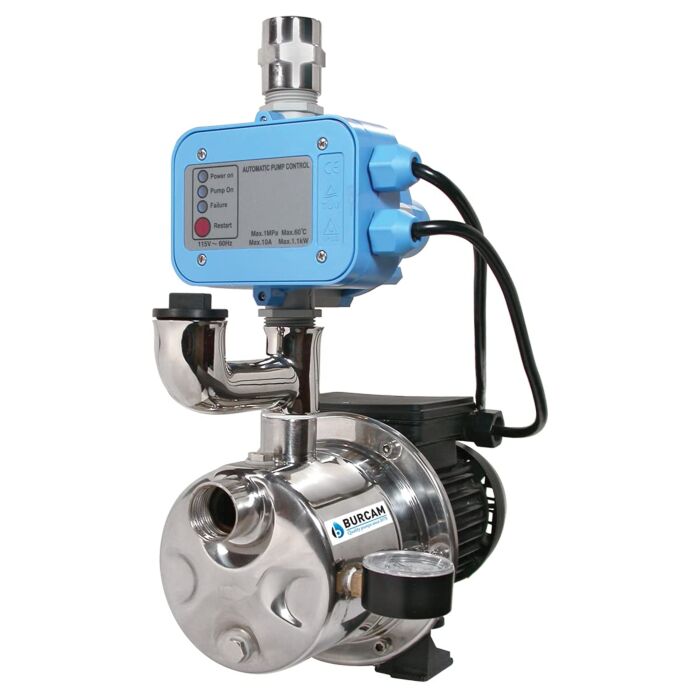

Shallow Well Jet Pump
SKU: 506532SS
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$419.99
Features
Specifications
The BURCAM 506532SS is two pumps in one. The pump has a 3/4 hp, 115V, 60 Hz, totally enclosed fan-cooled motor with thermal and overload protection. The pump delivers a static pressure of 60-65 psi. It is easy to install and portable with its 9 ft power cord. When used as a pressure booster, a pressure regulator must be used prior to the pump inlet if the municipal pressure is greater than 25 psi. Do not use with a pressure tank installed after the pump.
- Totally enclosed fan-cooled motor
- 115/230V, 60Hz and 115V
- Bearing to bearing stainless steel motor shaft
- Automatic thermal and overload protection
- Full-time run capacitor
- 1’’ NPT suction and discharge
| Brand | Burcam |
|---|---|
| UPC | 772910065324 |
| Store Location (Lititz, PA) | Aisle 08, Section I5 |
| Package Length (in) | 16.20" |
| Package Width (in) | 9.60" |
| Package Height (in) | 18.80" |
| Flow Rate | 16.4 gal |
| Inlet Size | 1" |
| Outlet Size | 1" |
| Material | Stainless Steel |
| Voltage Rating | 115 V, 115V/230V w/ Selector Switch |
| Current Rating | 7.5 A |
| Pressure Rating | 70 psi Maximum |
| Dimensions | 17" L x 10" x 19" |
| Horsepower | 3/4 hp |
| Hertz | 60 Hz |
| Discharge | 1" NPT |
| Max Lift | 25 ft |
