Milwaukee

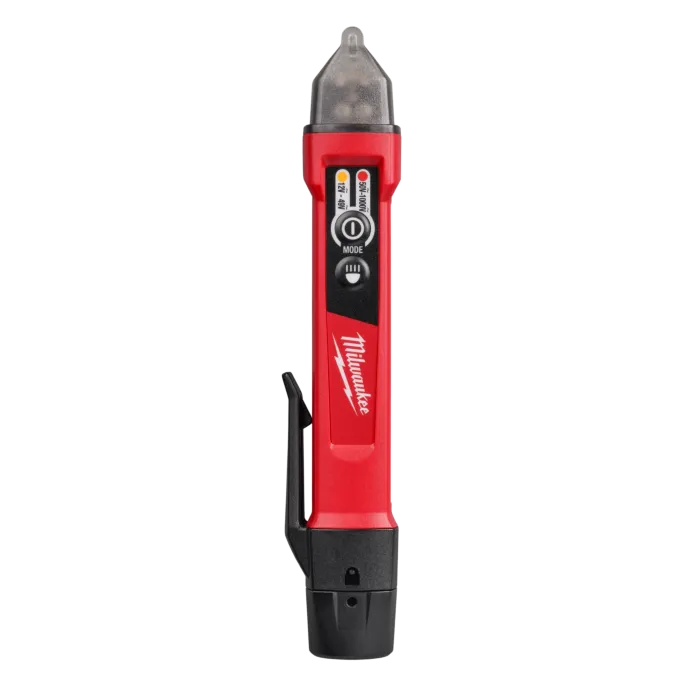

Dual Range Voltage Detector w/ LED

SKU: M320320

Need More?

Need more than what's currently in stock? We can help!

Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.

Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 10 in stock
Features chevron-down chevron-up
The Dual Range Non-Contact Voltage Detector w/ LED is designed to identify voltage anywhere live electricity is present and features a bright, independently operable work light. The expanded sensitivity range offers the ability to detect voltage in common systems that would normally go undetected when using a standard voltage detector. The Dual Range Voltage Detector detects and automatically differentiates low voltage, 12-49V, from higher voltage, 50- 1000V, when in low voltage detection mode. The Voltage Detector provides a yellow indicator when low voltage is detected and a red indicator when high voltage is detected. Voltage is detected between 50V and 1000V and has an industry-leading safety rating of CAT IV 1000V.
  • Lower voltage range: 12V - 49V AC
  • Higher voltage range: 50V - 1000V AC
  • Independently operable LED work light
  • Reinforced tip design for increased durability
  • Visual & audible voltage indicators
  • Durable belt clip
  • Quarter turn cap for easy battery replacement
  • CAT IV 1000V safety rating
  • IP54: water and dust protection
  • Powered by (2) AAA batteries
  • 2-year warranty
Specifications chevron-down chevron-up
Brand Milwaukee
Date Added Jun 16, 2026
Store Location (Lititz, PA) Aisle 08, Section C5
Package Length (in) 9.05"
Package Width (in) 3.74"
Package Height (in) 1.77"
Manufacturer Part Number 3203-20
Height 5.64"
Length 1.02"
Width 1.05"
Batteries Included Yes
Weight 0.14 lb
Number of Pieces Included 1
Switch Type Push Button
Warranty 2 Year Limited Warranty
