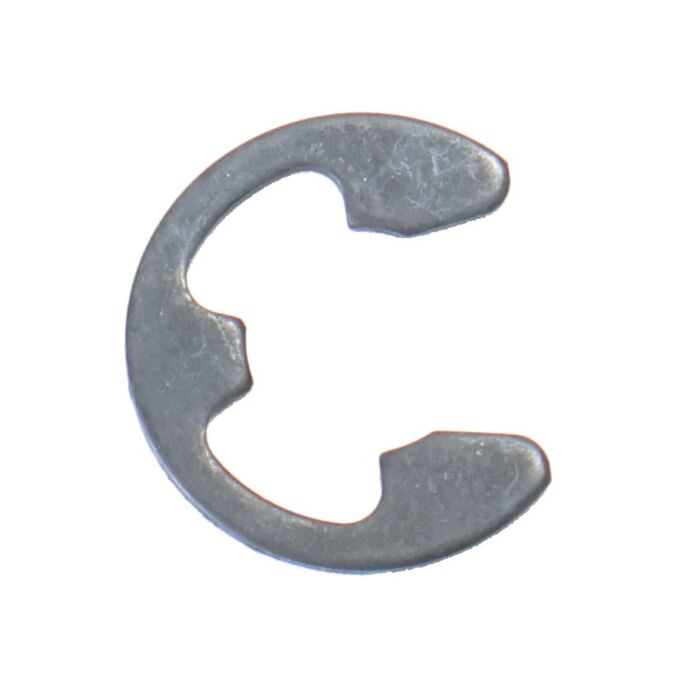

1/16 in 0.05 in Carbon Spring Steel External Radial E-Clip

SKU: EC116
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 42 in stock
This product must be picked up in-store.
Features chevron-down chevron-up
Radial E-Clip, External, 1/16 in Shaft Dia, 0.05 in Groove Dia, 0.012 in Groove Width, 0.01 in Groove Depth, 0.051 in Free Diameter, 0.156 in Clear Outside Diameter, 20 lb Maximum Thrust Load, HR15N 84.5-87 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.02 in Allowable Corner Chamfers, 0.03 in Allowable Corner Radii, 0.165 in Clearance Diameter Released in Groove, 0.002 in Groove Diameter to Shaft Concentricity, +0.001/-0.003 in Free Diameter Tolerance, +0.002/-0.000 in Groove Dia Tolerance, +0.002/-0.000 in Groove Width Tolerance, +/-0.001 in Thickness Tolerance, 40000 rpm RPM Limits
  • Rotor Clip E-Clip External Retaining Ring Clip 1/16 in Carbon Spring Steel Phosphate
  • Rotor Clip® is recognized worldwide as a global leader in the manufacture of high quality products utilized across numerous industry segments
  • External E-clips are radially installed tapered section retaining rings with three prongs that make constant contact with the bottom of the groove and provide a shoulder for effective retention of assemblies
  • Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
  • Carbon spring steel is high in strength and is known for its ability to resist deformation under stress
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Package Length (in) 0.06"
Package Width (in) 0.25"
Package Height (in) 0.06"
Type External
Shaft Diameter 1/16 in
Groove Diameter 0.05 in
Groove Width 0.012 in
Groove Depth 0.01 in
Free Diameter 0.051 in
Clear Outside Diameter 0.156 in
Maximum Thrust Load 20 lb
Hardness HR15N 84.5-87
Material Carbon Spring Steel
Finish Phosphate
Style Stamped
Allowable Corner Chamfers 0.02 in
Allowable Corner Radii 0.03 in
Clearance Diameter Released in Groove 0.165 in
Groove Diameter to Shaft Concentricity 0.002 in
Free Diameter Tolerance +0.001/-0.003 in
Groove Diameter Tolerance +0.002/-0.000 in
Groove Width Tolerance +0.002/-0.000 in
Thickness Tolerance +/-0.001 in
RPM Limits 40000 rpm
