Huyett

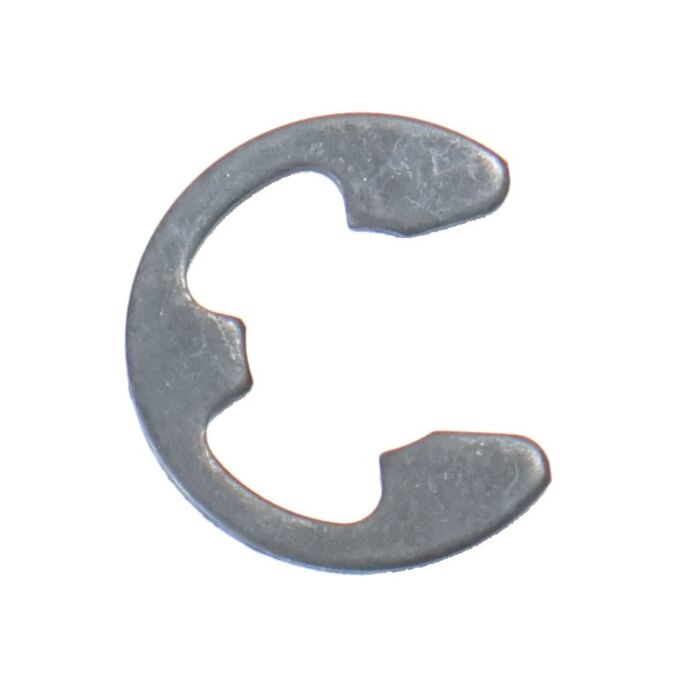

1/2 in 0.4 in Carbon Spring Steel External Radial E-Clip
SKU: EC12 | Location: Aisle 10, Section W4
$0.15
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
34 In stock
Features
Specifications
Radial E-Clip, External, 1/2 in Shaft Dia, 0.4 in Groove Dia, 0.05 in Groove Width, 0.05 in Groove Depth, 0.392 in Free Diameter, 0.8 in Clear Outside Diameter, 1110 lb Maximum Thrust Load, HRC 47-52 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.06 in Allowable Corner Chamfers, 0.08 in Allowable Corner Radii, 0.82 in Clearance Diameter Released in Groove, 0.004 in Groove Diameter to Shaft Concentricity, +0.002/-0.004 in Free Diameter Tolerance, +0.003/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 14000 rpm RPM Limits
- Rotor Clip E-Clip External Retaining Ring Clip 1/16 in Carbon Spring Steel Phosphate
- Rotor Clip® is recognized worldwide as a global leader in the manufacture of high quality products utilized across numerous industry segments
- External E-clips are radially installed tapered section retaining rings with three prongs that make constant contact with the bottom of the groove and provide a shoulder for effective retention of assemblies
- Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
- Carbon spring steel is high in strength and is known for its ability to resist deformation under stress
Brand | Huyett |
---|---|
Store Location (Lititz, PA) | Aisle 10, Section W4 |
Package Length (in) | 0.81" |
Package Width (in) | 0.69" |
Package Height (in) | 0.06" |
Manufacturer Part Number | E-050 |
Type | External |
Shaft Diameter | 1/2 in |
Groove Diameter | 0.4 in |
Groove Width | 0.05 in |
Groove Depth | 0.05 in |
Free Diameter | 0.392 in |
Clear Outside Diameter | 0.8 in |
Maximum Thrust Load | 1110 lb |
Hardness | HRC 47-52 |
Material | Carbon Spring Steel |
Finish | Phosphate |
Style | Stamped |
Allowable Corner Chamfers | 0.06 in |
Allowable Corner Radii | 0.08 in |
Clearance Diameter Released in Groove | 0.82 in |
Groove Diameter to Shaft Concentricity | 0.004 in |
Free Diameter Tolerance | +0.002/-0.004 in |
Groove Diameter Tolerance | +0.003/-0.000 in |
Groove Width Tolerance | +0.003/-0.000 in |
Thickness Tolerance | +/-0.002 in |
RPM Limits | 14000 rpm |
