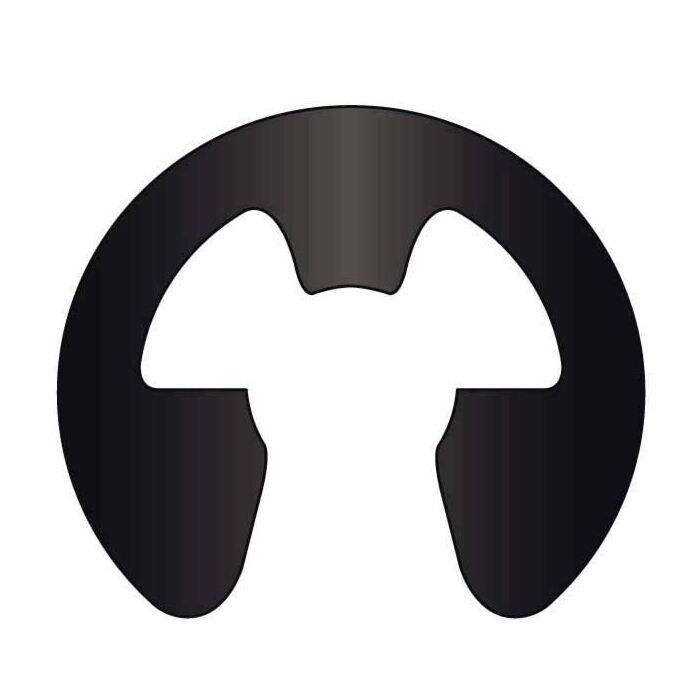

1 in 0.84 in Carbon Spring Steel Special External Radial E-Clip

SKU: EC1
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 8 in stock
Features chevron-down chevron-up
Radial E-Clip, Special External, 1 in Shaft Dia, 0.84 in Groove Dia, 0.06 in Groove Width, 0.07 in Groove Depth, 0.822 in Free Diameter, 1-1/2 in Clear Outside Diameter, 2700 lb Maximum Thrust Load, HRC 47-52 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.065 in Allowable Corner Chamfers, 0.085 in Allowable Corner Radii, 1.53 in Clearance Diameter Released in Groove, 0.004 in Groove Diameter to Shaft Concentricity, +0.003/-0.005 in Free Diameter Tolerance, +0.003/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 6500 rpm RPM Limits
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Package Length (in) 1.50"
Package Width (in) 1.38"
Package Height (in) 0.06"
Type Special External
Shaft Diameter 1 in
Groove Diameter 0.84 in
Groove Width 0.06 in
Groove Depth 0.07 in
Free Diameter 0.822 in
Clear Outside Diameter 1-1/2 in
Maximum Thrust Load 2700 lb
Hardness HRC 47-52
Material Carbon Spring Steel
Finish Phosphate
Style Stamped
Allowable Corner Chamfers 0.065 in
Allowable Corner Radii 0.085 in
Clearance Diameter Released in Groove 1.53 in
Groove Diameter to Shaft Concentricity 0.004 in
Free Diameter Tolerance +0.003/-0.005 in
Groove Diameter Tolerance +0.003/-0.000 in
Groove Width Tolerance +0.003/-0.000 in
Thickness Tolerance +/-0.002 in
RPM Limits 6500 rpm
