Huyett

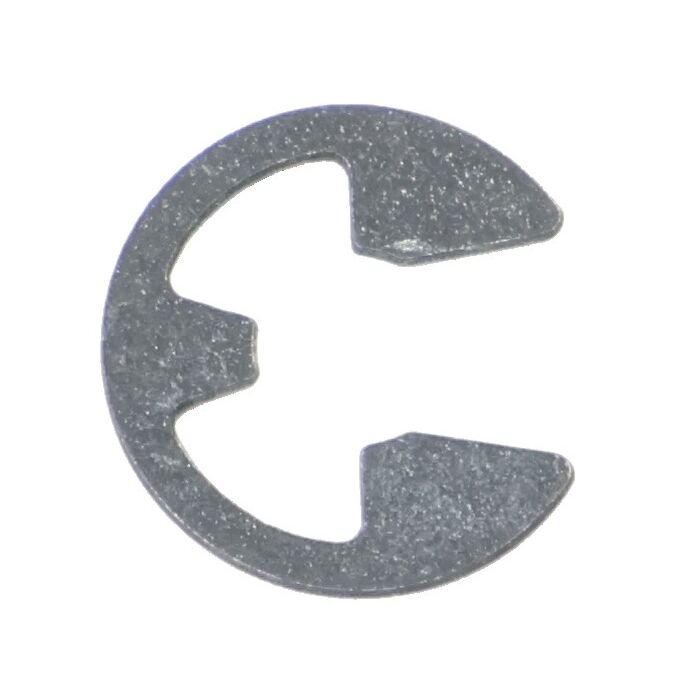

3/16 in 0.15 in Carbon Spring Steel External Radial E-Clip
SKU: EC316 | Location: Aisle 10, Section W5
$0.15
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Not available for parcel delivery
27 In stock
- Buy 10 for $0.11 each and save 27%
Features
Specifications
Radial E-Clip, External, 3/16 in Shaft Dia, 0.15 in Groove Dia, 0.03 in Groove Width, 0.02 in Groove Depth, 0.145 in Free Diameter, 0.335 in Clear Outside Diameter, 190 lb Maximum Thrust Load, HR30N 66.5-71 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.045 in Allowable Corner Chamfers, 0.06 in Allowable Corner Radii, 0.35 in Clearance Diameter Released in Groove, 0.002 in Groove Diameter to Shaft Concentricity, +0.002/-0.003 in Free Diameter Tolerance, +0.002/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 30000 rpm RPM Limits
- Rotor Clip E-Clip External Retaining Ring Clip 1/16 in Carbon Spring Steel Phosphate
- Rotor Clip® is recognized worldwide as a global leader in the manufacture of high quality products utilized across numerous industry segments
- External E-clips are radially installed tapered section retaining rings with three prongs that make constant contact with the bottom of the groove and provide a shoulder for effective retention of assemblies
- Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
- Carbon spring steel is high in strength and is known for its ability to resist deformation under stress
Brand | Huyett |
---|---|
Store Location (Lititz, PA) | Aisle 10, Section W5 |
Package Length (in) | 0.02" |
Package Width (in) | 0.02" |
Package Height (in) | 0.02" |
Manufacturer Part Number | E-018 |
Type | External |
Shaft Diameter | 3/16 in |
Groove Diameter | 0.15 in |
Groove Width | 0.03 in |
Groove Depth | 0.02 in |
Free Diameter | 0.145 in |
Clear Outside Diameter | 0.335 in |
Maximum Thrust Load | 190 lb |
Hardness | HR30N 66.5-71 |
Material | Carbon Spring Steel |
Finish | Phosphate |
Style | Stamped |
Allowable Corner Chamfers | 0.045 in |
Allowable Corner Radii | 0.06 in |
Clearance Diameter Released in Groove | 0.35 in |
Groove Diameter to Shaft Concentricity | 0.002 in |
Free Diameter Tolerance | +0.002/-0.003 in |
Groove Diameter Tolerance | +0.002/-0.000 in |
Groove Width Tolerance | +0.003/-0.000 in |
Thickness Tolerance | +/-0.002 in |
RPM Limits | 30000 rpm |
