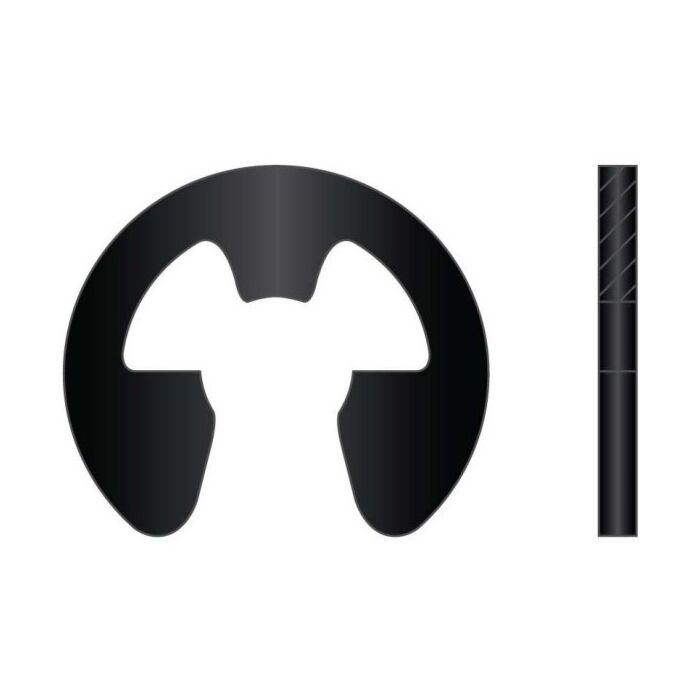

5/16 in 1/4 in Carbon Spring Steel Special External Radial E-Clip

SKU: EC516
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 17 in stock
Features chevron-down chevron-up
Radial E-Clip, Special External, 5/16 in Shaft Dia, 1/4 in Groove Dia, 0.03 in Groove Width, 0.031 in Groove Depth, 0.243 in Free Diameter, 1/2 in Clear Outside Diameter, 325 lb Maximum Thrust Load, HR30N 66.5-71 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.045 in Allowable Corner Chamfers, 0.06 in Allowable Corner Radii, 1/2 in Clearance Diameter Released in Groove, 0.004 in Groove Diameter to Shaft Concentricity, +0.002/-0.004 in Free Diameter Tolerance, +0.003/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 22000 rpm RPM Limits
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Package Length (in) 0.50"
Package Width (in) 0.50"
Package Height (in) 0.03"
Type Special External
Shaft Diameter 5/16 in
Groove Diameter 1/4 in
Groove Width 0.03 in
Groove Depth 0.031 in
Free Diameter 0.243 in
Clear Outside Diameter 1/2 in
Maximum Thrust Load 325 lb
Hardness HR30N 66.5-71
Material Carbon Spring Steel
Finish Phosphate
Style Stamped
Allowable Corner Chamfers 0.045 in
Allowable Corner Radii 0.06 in
Clearance Diameter Released in Groove 1/2 in
Groove Diameter to Shaft Concentricity 0.004 in
Free Diameter Tolerance +0.002/-0.004 in
Groove Diameter Tolerance +0.003/-0.000 in
Groove Width Tolerance +0.003/-0.000 in
Thickness Tolerance +/-0.002 in
RPM Limits 22000 rpm
