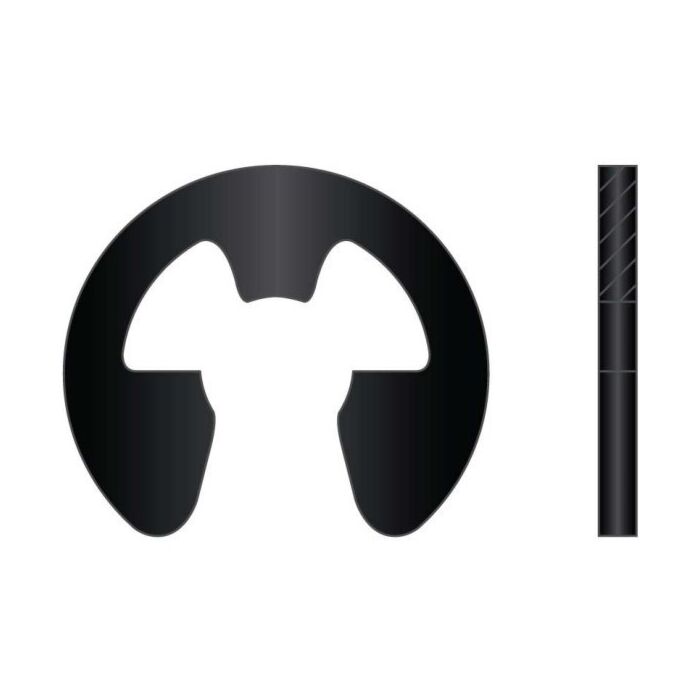

5/32 in 0.12 in Carbon Spring Steel External Radial E-Clip

SKU: EC532
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 11 in stock
Features chevron-down chevron-up
Radial E-Clip, External, 5/32 in Shaft Dia, 0.12 in Groove Dia, 0.03 in Groove Width, 0.02 in Groove Depth, 0.114 in Free Diameter, 0.282 in Clear Outside Diameter, 175 lb Maximum Thrust Load, HR30N 66.5-71 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.045 in Allowable Corner Chamfers, 0.06 in Allowable Corner Radii, 0.295 in Clearance Diameter Released in Groove, 0.002 in Groove Diameter to Shaft Concentricity, +0.002/-0.003 in Free Diameter Tolerance, +0.002/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 31000 rpm RPM Limits
  • Rotor Clip E-Clip External Retaining Ring Clip 1/16 in Carbon Spring Steel Phosphate
  • Rotor Clip® is recognized worldwide as a global leader in the manufacture of high quality products utilized across numerous industry segments
  • External E-clips are radially installed tapered section retaining rings with three prongs that make constant contact with the bottom of the groove and provide a shoulder for effective retention of assemblies
  • Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
  • Carbon spring steel is high in strength and is known for its ability to resist deformation under stress
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Package Length (in) 0.01"
Package Width (in) 0.25"
Package Height (in) 0.25"
Type External
Shaft Diameter 5/32 in
Groove Diameter 0.12 in
Groove Width 0.03 in
Groove Depth 0.02 in
Free Diameter 0.114 in
Clear Outside Diameter 0.282 in
Maximum Thrust Load 175 lb
Hardness HR30N 66.5-71
Material Carbon Spring Steel
Finish Phosphate
Style Stamped
Allowable Corner Chamfers 0.045 in
Allowable Corner Radii 0.06 in
Clearance Diameter Released in Groove 0.295 in
Groove Diameter to Shaft Concentricity 0.002 in
Free Diameter Tolerance +0.002/-0.003 in
Groove Diameter Tolerance +0.002/-0.000 in
Groove Width Tolerance +0.003/-0.000 in
Thickness Tolerance +/-0.002 in
RPM Limits 31000 rpm
