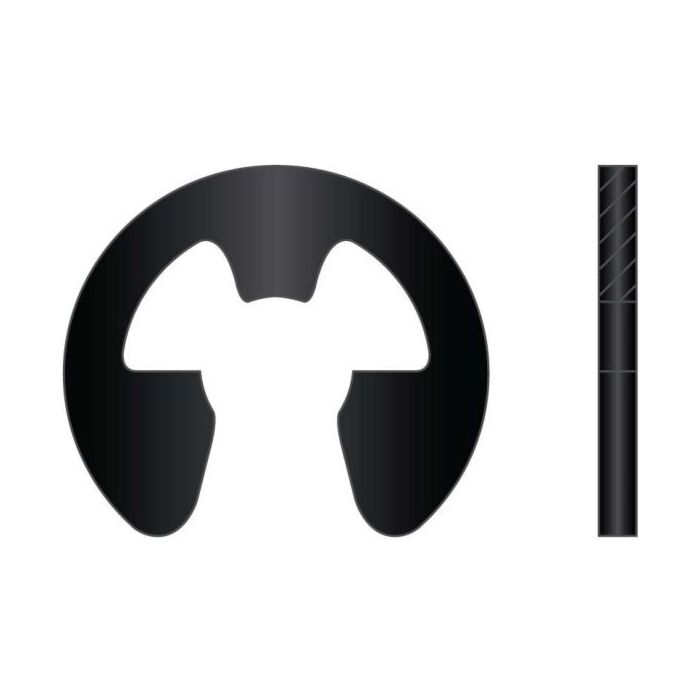

7/16 in 0.34 in Carbon Spring Steel External Radial E-Clip

SKU: EC716
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 20 in stock
This product must be picked up in-store.
Features chevron-down chevron-up
Radial E-Clip, External, 7/16 in Shaft Dia, 0.34 in Groove Dia, 0.04 in Groove Width, 0.05 in Groove Depth, 0.337 in Free Diameter, 0.687 in Clear Outside Diameter, 830 lb Maximum Thrust Load, HRC 47-52 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.05 in Allowable Corner Chamfers, 0.065 in Allowable Corner Radii, 0.71 in Clearance Diameter Released in Groove, 0.004 in Groove Diameter to Shaft Concentricity, +0.002/-0.004 in Free Diameter Tolerance, +0.003/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 16500 rpm RPM Limits
  • Rotor Clip E-Clip External Retaining Ring Clip 1/16 in Carbon Spring Steel Phosphate
  • Rotor Clip® is recognized worldwide as a global leader in the manufacture of high quality products utilized across numerous industry segments
  • External E-clips are radially installed tapered section retaining rings with three prongs that make constant contact with the bottom of the groove and provide a shoulder for effective retention of assemblies
  • Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
  • Carbon spring steel is high in strength and is known for its ability to resist deformation under stress
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Package Length (in) 0.69"
Package Width (in) 0.63"
Package Height (in) 0.03"
Type External
Shaft Diameter 7/16 in
Groove Diameter 0.34 in
Groove Width 0.04 in
Groove Depth 0.05 in
Free Diameter 0.337 in
Clear Outside Diameter 0.687 in
Maximum Thrust Load 830 lb
Hardness HRC 47-52
Material Carbon Spring Steel
Finish Phosphate
Style Stamped
Allowable Corner Chamfers 0.05 in
Allowable Corner Radii 0.065 in
Clearance Diameter Released in Groove 0.71 in
Groove Diameter to Shaft Concentricity 0.004 in
Free Diameter Tolerance +0.002/-0.004 in
Groove Diameter Tolerance +0.003/-0.000 in
Groove Width Tolerance +0.003/-0.000 in
Thickness Tolerance +/-0.002 in
RPM Limits 16500 rpm
