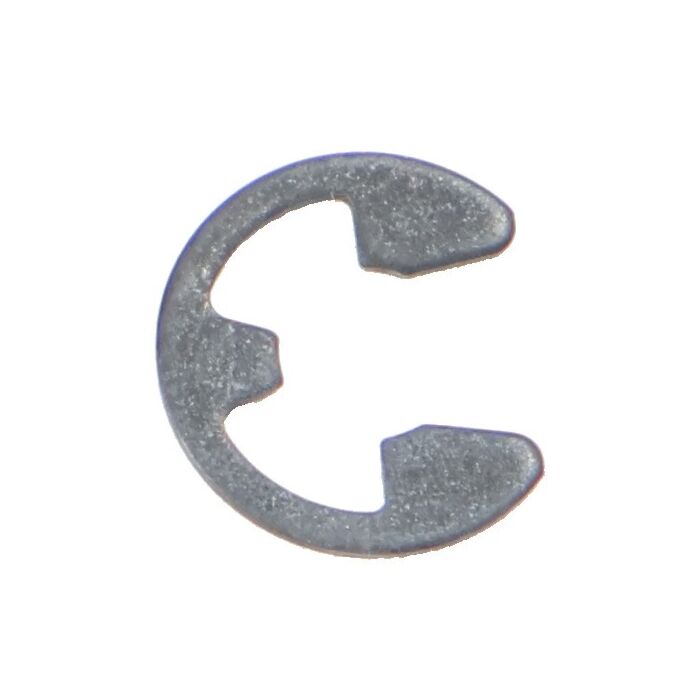

7/32 in 0.19 in Carbon Spring Steel Special External Radial E-Clip
SKU: EC732
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$0.20
- Buy 10 for $0.15 each and save 25%
Features
Specifications
Radial E-Clip, Special External, 7/32 in Shaft Dia, 0.19 in Groove Dia, 0.03 in Groove Width, 0.02 in Groove Depth, 0.185 in Free Diameter, 0.437 in Clear Outside Diameter, 225 lb Maximum Thrust Load, HR30N 66.5-71 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.045 in Allowable Corner Chamfers, 0.06 in Allowable Corner Radii, 0.45 in Clearance Diameter Released in Groove, 0.002 in Groove Diameter to Shaft Concentricity, +0.001/-0.003 in Free Diameter Tolerance, +0.002/-0.000 in Groove Dia Tolerance, +0.003/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 26000 rpm RPM Limits
| Store Location (Lititz, PA) | Aisle 10, Section W4 |
|---|---|
| Package Length (in) | 0.50" |
| Package Width (in) | 0.38" |
| Package Height (in) | 0.03" |
| Type | Special External |
| Shaft Diameter | 7/32 in |
| Groove Diameter | 0.19 in |
| Groove Width | 0.03 in |
| Groove Depth | 0.02 in |
| Free Diameter | 0.185 in |
| Clear Outside Diameter | 0.437 in |
| Maximum Thrust Load | 225 lb |
| Hardness | HR30N 66.5-71 |
| Material | Carbon Spring Steel |
| Finish | Phosphate |
| Style | Stamped |
| Allowable Corner Chamfers | 0.045 in |
| Allowable Corner Radii | 0.06 in |
| Clearance Diameter Released in Groove | 0.45 in |
| Groove Diameter to Shaft Concentricity | 0.002 in |
| Free Diameter Tolerance | +0.001/-0.003 in |
| Groove Diameter Tolerance | +0.002/-0.000 in |
| Groove Width Tolerance | +0.003/-0.000 in |
| Thickness Tolerance | +/-0.002 in |
| RPM Limits | 26000 rpm |
