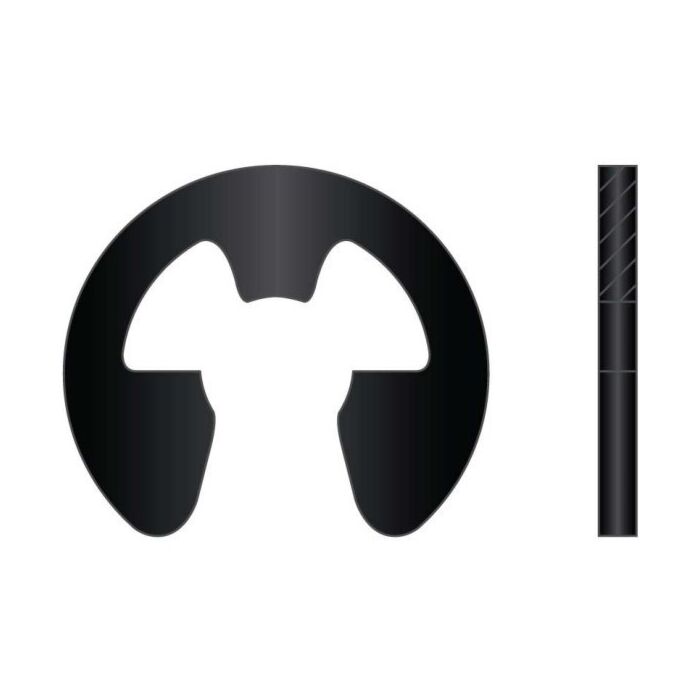

7/64 in 0.08 in Carbon Spring Steel Special External Radial E-Clip

SKU: EC764
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 25 in stock
Features chevron-down chevron-up
Radial E-Clip, Special External, 7/64 in Shaft Dia, 0.08 in Groove Dia, 0.02 in Groove Width, 0.02 in Groove Depth, 0.076 in Free Diameter, 3/8 in Clear Outside Diameter, 60 lb Maximum Thrust Load, HR15N 84.5-87 Hardness, Carbon Spring Steel, Phosphate, Stamped, 0.06 in Allowable Corner Chamfers, 0.08 in Allowable Corner Radii, 0.39 in Clearance Diameter Released in Groove, 0.002 in Groove Diameter to Shaft Concentricity, +0.001/-0.003 in Free Diameter Tolerance, +0.002/-0.000 in Groove Dia Tolerance, +0.002/-0.000 in Groove Width Tolerance, +/-0.002 in Thickness Tolerance, 35000 rpm RPM Limits
  • Rotor Clip E-Clip Special External Retaining Ring Clip 7/64 in Carbon Spring Steel Phosphate
  • Rotor Clip® is recognized worldwide as a global leader in the manufacture of high quality products utilized across numerous industry segments
  • Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
  • Phosphate finish is a thin external layer created by chemical application and can serve as a base for paint or oil, provide corrosion resistance and reduce friction
  • Carbon spring steel is high in strength and is known for its ability to resist deformation under stress
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Package Length (in) 0.38"
Package Width (in) 0.38"
Package Height (in) 0.03"
Type Special External
Shaft Diameter 7/64 in
Groove Diameter 0.08 in
Groove Width 0.02 in
Groove Depth 0.02 in
Free Diameter 0.076 in
Clear Outside Diameter 3/8 in
Maximum Thrust Load 60 lb
Hardness HR15N 84.5-87
Material Carbon Spring Steel
Finish Phosphate
Style Stamped
Allowable Corner Chamfers 0.06 in
Allowable Corner Radii 0.08 in
Clearance Diameter Released in Groove 0.39 in
Groove Diameter to Shaft Concentricity 0.002 in
Free Diameter Tolerance +0.001/-0.003 in
Groove Diameter Tolerance +0.002/-0.000 in
Groove Width Tolerance +0.002/-0.000 in
Thickness Tolerance +/-0.002 in
RPM Limits 35000 rpm
