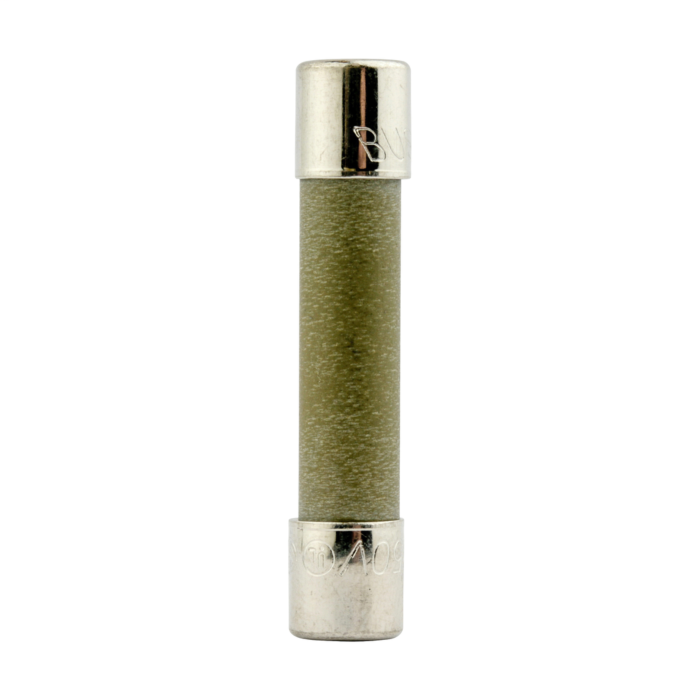

Eaton Bussmann series fast-acting fuse
SKU: ABC25
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
Features
Specifications
Downloads
Eaton Bussmann series fast-acting fuse
| Brand | Bussmann |
|---|---|
| UPC | 051712700177 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 0.60" |
| Package Width (in) | 2.20" |
| Package Height (in) | 2.20" |
| Manufacturer Part Number | ABC-25-R |
| Height | 1.25 IN |
| Length | .25 IN |
| Width | .25 IN |
| Weight | .009 LB |
| Type | Electronic |
| Application | Electronic circuits |
| Voltage Rating | 250 Vac, 125 Vdc, 32 Vac (self certified) |
| Amperage Rating | 25A |
| Interrupt Rating | 200 AIC at 250 Vac, 1000 AIC at 125 Vac, 400 AIC at 125 Vdc, 1 kAIC at 75 Vdc |
| Connection | Ferrule end X ferrule end |
| Material Type | Ceramic tube, nickel-plated brass endcaps |
| Packaging Type | Standard |
| Diameter | .25 IN |
| Melting (L2T) | Typical pre-arc: 839.3 |
| Resistance | Typical DC cold: .0028 ohms |
| Voltage Drop | Typical: .09 mV |
| Fuse Indicator | Non Indicating |
| Response Time | 4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200% |
| Notes | Ceramic body allows for higher amp/volt rating combinations. |
